Hydraulic motor MR 125 SH shaft, ALSG2-L-125-O2-SH-01 Ambr
160,00 € excl. VAT
ALSG2-L-125-O2-SHD-01 21004275
2 in stock
ALSG2-L-125-O2-SHD-01 21004275
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: ALSG2 / ALSG2S 125 |
| Geometric displacement: 127.2 cm³/rev |
| Max. speed (continuous): 475 rpm |
| Max. speed (intermittent): 600 rpm |
| Max. torque (continuous): 300 Nm |
| Max. torque (intermittent): 340 Nm |
| Max. torque peak: 370 Nm |
| Max. output power (continuous): 12.5 kW |
| Max. output power (intermittent): 14.5 kW |
| Max. pressure drop (continuous): 17.5 MPa |
| Max. pressure drop (intermittent): 20 MPa |
| Max. pressure peak: 22.5 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 7.3 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 125 |

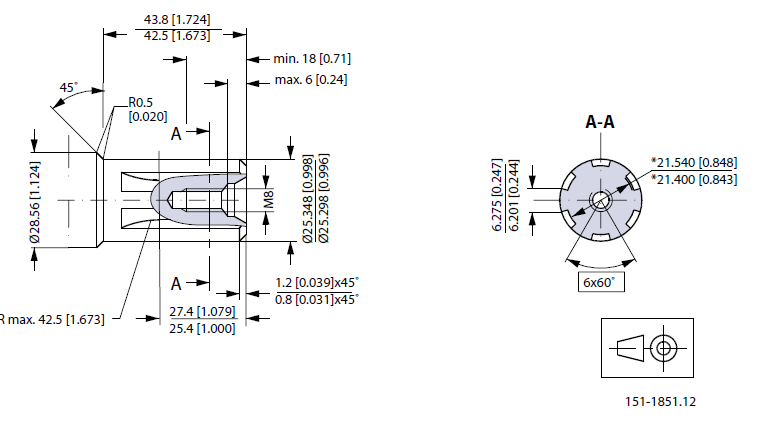

| Shaft | 6 dantys, 25.4mm |
