Hydraulic motor MR 100 CB 32mm shaft, ALSG2-100-O2-C32-01 Ambr
160,00 € excl. VAT
BRM100; SH100101016003, BMR-100-2-B-DH 151-0244 EPRM-100CB ALSG2-100-O2-C32-01
1 in stock
BRM100; SH100101016003, BMR-100-2-B-DH 151-0244 EPRM-100CB ALSG2-100-O2-C32-01
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

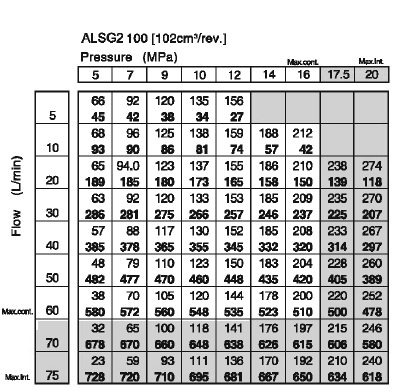

| Specification |
|---|
| Type: ALSG2 / ALSG2S 100 |
| Geometric displacement: 102 cm³/rev |
| Max. speed (continuous): 600 rpm |
| Max. speed (intermittent): 750 rpm |
| Max. torque (continuous): 240 Nm |
| Max. torque (intermittent): 280 Nm |
| Max. torque peak: 320 Nm |
| Max. output power (continuous): 13.0 kW |
| Max. output power (intermittent): 15.0 kW |
| Max. pressure drop (continuous): 17.5 MPa |
| Max. pressure drop (intermittent): 20 MPa |
| Max. pressure peak: 22.5 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 7.0 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 100 |
| Shaft | 32mm |
