Hydraulic motor MR 100 C 25mm shaft
500,00 € excl. VAT
EPRME-100
Out of stock
EPRME-100
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Orbital gearwheel set type: Geroler |
| Motor size: 100 |
| Geometric displacement: 101.3 cm³/rev [6.18 in³/rev] |
| Motor type: Standard |
| Motor function: Standard |

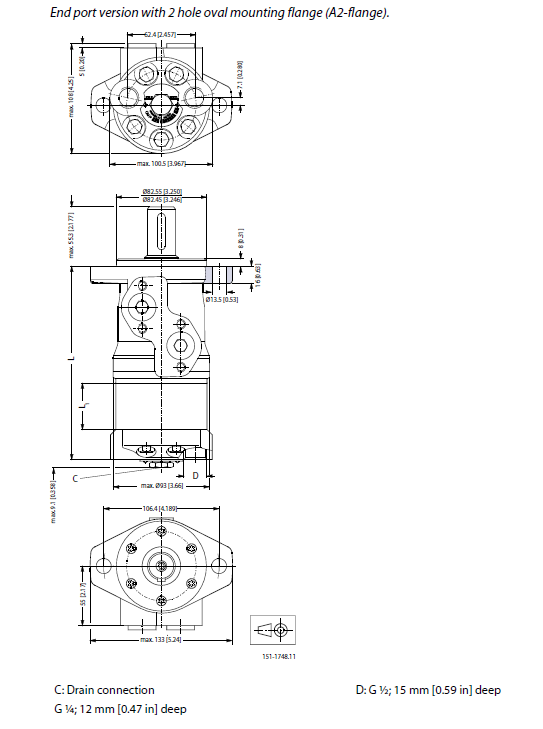

| Mounting flange type: 2-bolt – A |
| Mounting flange dimensions: 82.6 × 5.0 mm (pilot dia × height), bolt circle dia 106.4 mm, hole 13.5 mm [3.25 × 0.20 in, 4.19 in, 0.53 in] |
| Shaft type: Straight |

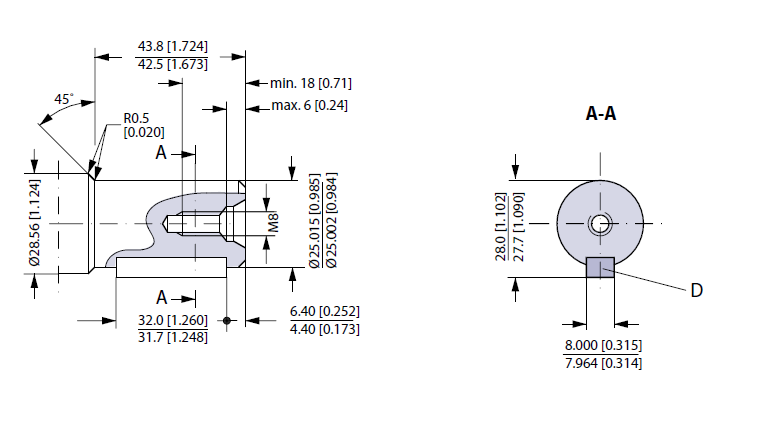

| Shaft dimensions: Diameter 25 mm, M8 thread in shaft end (special component) |
| Shaft key: Rectangular key A8 × 7 × 32 mm |
| Main port thread type: BSP |
| Main port style: End port |
| Main port dimensions: G 1/2, 4 × M8 block mounting threads |
| Drain port dimensions: G 1/4 |
| Brake release port dimensions: N/A |
| Painted: Yes |
| Paint information: Painted, black |
| Special features assembly: Standard |
| Dust seal: Standard |
| Shaft seal: NBR – high pressure |
| Seal kit: Z331-59 |
| Front bearing type: Journal bearing |
| Rear bearing type: Journal bearing |
| Orbital gearwheel set: Standard |
| Check valve function: Yes |
| Hydraulic valve function: None |
| Sensor: None |
| Packaging: No data available |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Rear |
| Type | Orbital (Gerotor) |
| Volume | 100 |
| Shaft | 25mm |
