Hydraulic motor MR 080 SH shaft, ALSG2-L-80-O2-SH-01
160,00 € excl. VAT
ALSG2-L-80-O2-SHD-01 21006285 OMR80SH
1 in stock
ALSG2-L-80-O2-SHD-01 21006285 OMR80SH
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: ALSG1 / ALSG1W 80 |
| Geometric displacement: 77.7 cm³/rev |
| Max. speed (continuous): 770 rpm |
| Max. speed (intermittent): 960 rpm |
| Max. torque (continuous): 146 Nm |
| Max. torque (intermittent): 186 Nm |
| Max. torque peak: 218 Nm |
| Max. output power (continuous): 10.0 kW |
| Max. output power (intermittent): 12.0 kW |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 22.5 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 5.7 kg |
Additional information

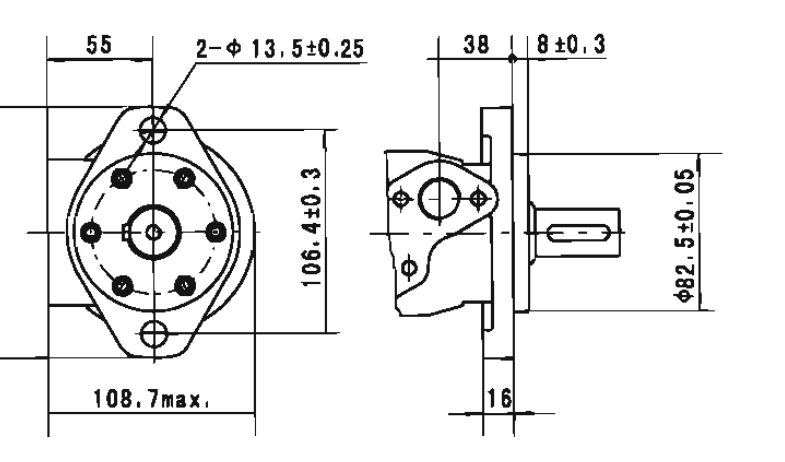

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 80 |
| Shaft | 6 dantys, 25.4mm |
