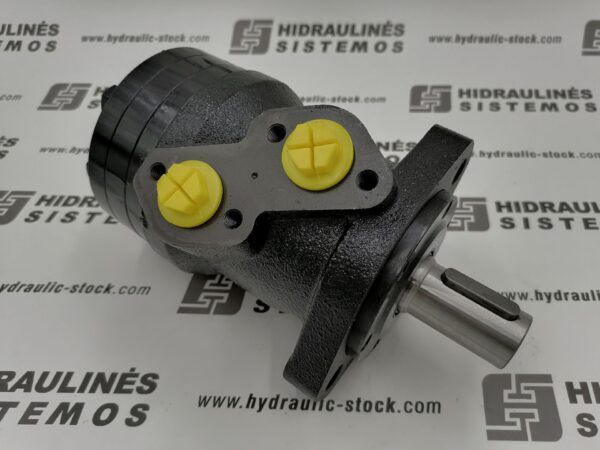

Hydraulic motor MR 080 C 25mm shaft, ziHYD BMRY-80 P41
Original price was: 231,00 €.125,00 €Current price is: 125,00 €. excl. VAT
EPRM080 MR80 OMR80 120101008030
4 in stock
EPRM080 MR80 OMR80 120101008030
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: BMR-80 |
| Displacement: 80.5 ml/rev |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 20 MPa |
| Max. torque (continuous): 152 Nm |
| Max. torque (intermittent): 189 Nm |
| Max. torque peak: 216 Nm |
| Continuous speed range: 10–750 rpm |
| Max. flow (continuous): 60 l/min |
| Max. output power (continuous): 10 kW |
| Weight: 6.9 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 80 |
| Shaft | 25mm |
