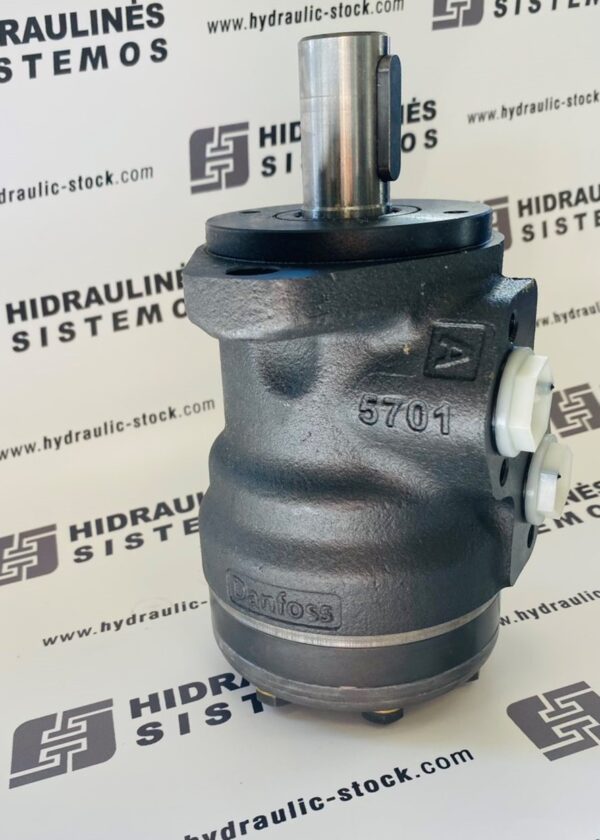

Hydraulic motor MR 080 C 25mm shaft, 11186671 A2 Danfoss
460,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Motor family (A): OMRX |
| Motor size – displacement (B): 080 (80 cm³/rev) |
| Motor type (C): Standard motor |

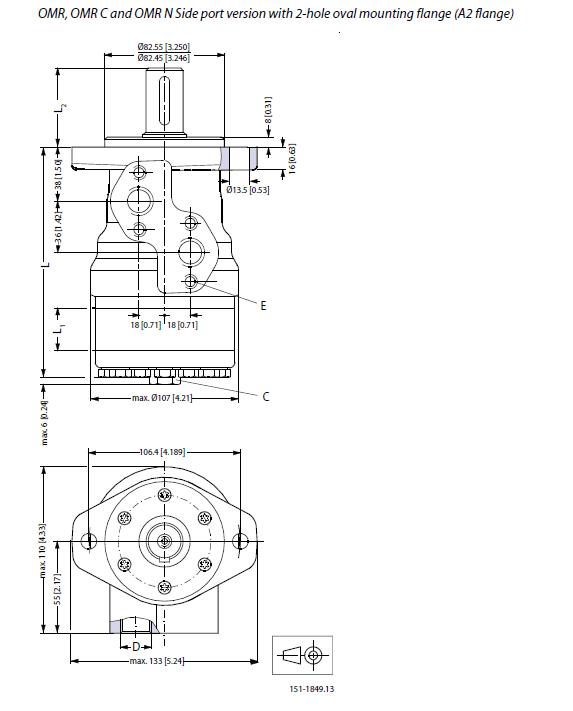

| Mounting type (D): B11 – A2 flange; pilot dia. 82.5 × 8 mm [3.25 × 0.32 in]; bolt circle dia. 106.4 mm [4.20 in] |
| Port type (E): Side port – offset |
| Main port thread (F): G 1/2 |

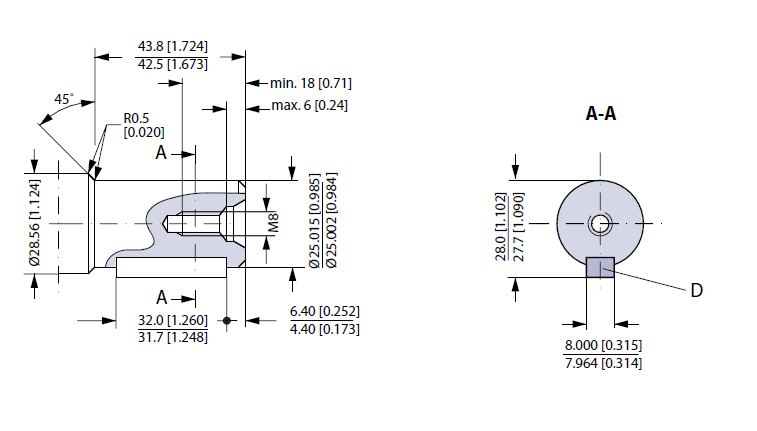

| Output shaft (G): Cylindrical Ø25 mm with straight key; M8 thread in shaft end |
| Shaft seal (H): High-pressure NBR shaft seal |
| Dust seal (J): Integrated in shaft seal |
| Drain port (K): G 1/4 |
| Check valve (L): Yes |
| Brake release port (M): None |
| Speed sensor (N): None |
| Paint (P): No paint |
| Valve option (R): None |
| Special feature – external (S): None |
| Special feature – visible (S): None |
| Special feature – internal (T): None |
| Packaging (U): Single pack |
| Motor label (V): Danfoss name tag |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Danfoss |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 80 |
| Shaft | 25mm |
