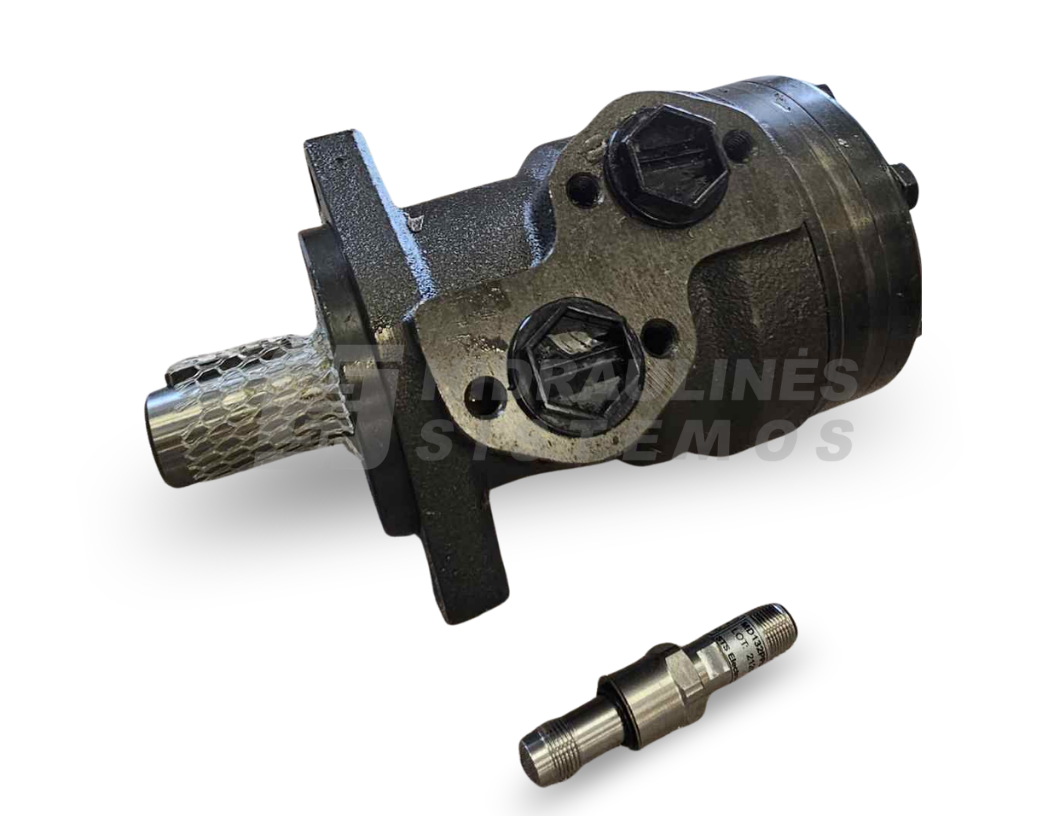

Hydraulic motor MR 080 25.4mm-1” shaft, with speed sensor, MR080VCOURS
396,00 € excl. VAT
Hydraulic motor MR 080 VCOURS 25.4mm 200 bar m+s
Out of stock
Hydraulic motor MR 080 VCOURS 25.4mm 200 bar m+s
Product information
Description
M+S Hydraulic MR080VCOURS is an MR-series orbital hydraulic motor with a displacement of 80.3 cm³/rev. The motor is designed for hydraulic drive systems requiring high torque, compact construction and rotational speed monitoring.
The VCO shaft is a straight Ø1″ (25.4 mm) keyed shaft with a corrosion-resistant bushing. In the VCO designation, the letter V indicates the corrosion-resistant bushing, which provides additional protection against corrosion around the shaft area. This feature is particularly useful in mobile and agricultural machinery operating in wet, dirty or other demanding environmental conditions.
MR080VCOURS also features a high-pressure shaft seal and an inductive speed sensor. The sensor enables motor speed monitoring and provides a signal that can be used by the machine’s control or monitoring system.
MR-series orbital motors are suitable for agricultural machinery, conveyors, manipulators, cutting mechanisms and various mobile and industrial hydraulic drives.
Technical Data
- Manufacturer: M+S Hydraulic
- Model: MR080VCOURS
- Series: MR
- Type: Orbital hydraulic motor
- Displacement: 80.3 cm³/rev
- Shaft type: VCO

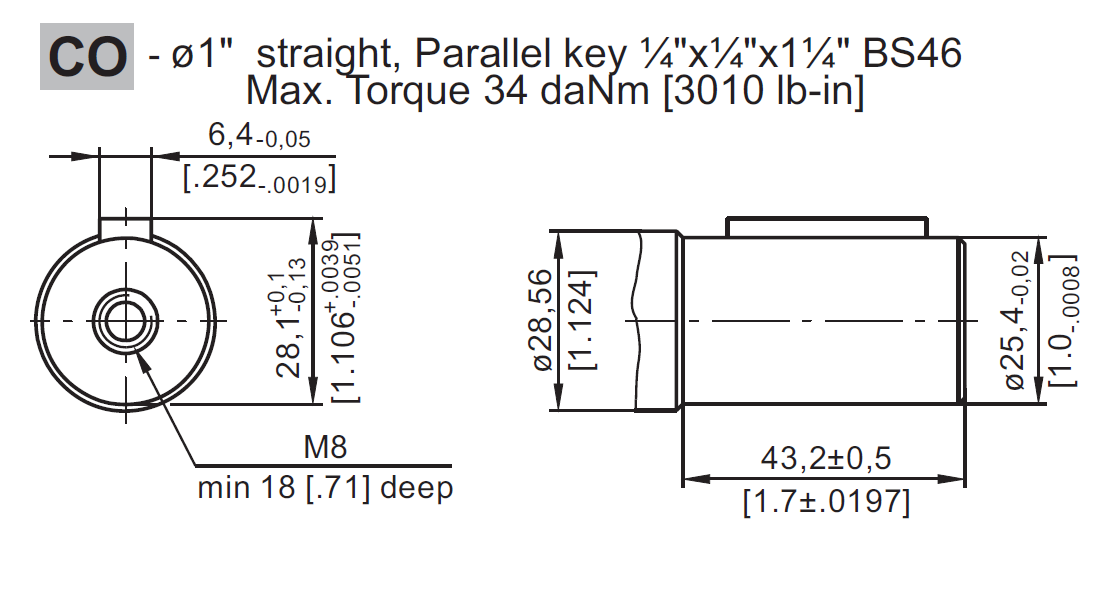

- Shaft: Straight Ø1″ (25.4 mm), keyed
- VCO feature: Corrosion-resistant bushing
- Shaft seal: High-pressure
- Speed monitoring: Inductive speed sensor
Additional information

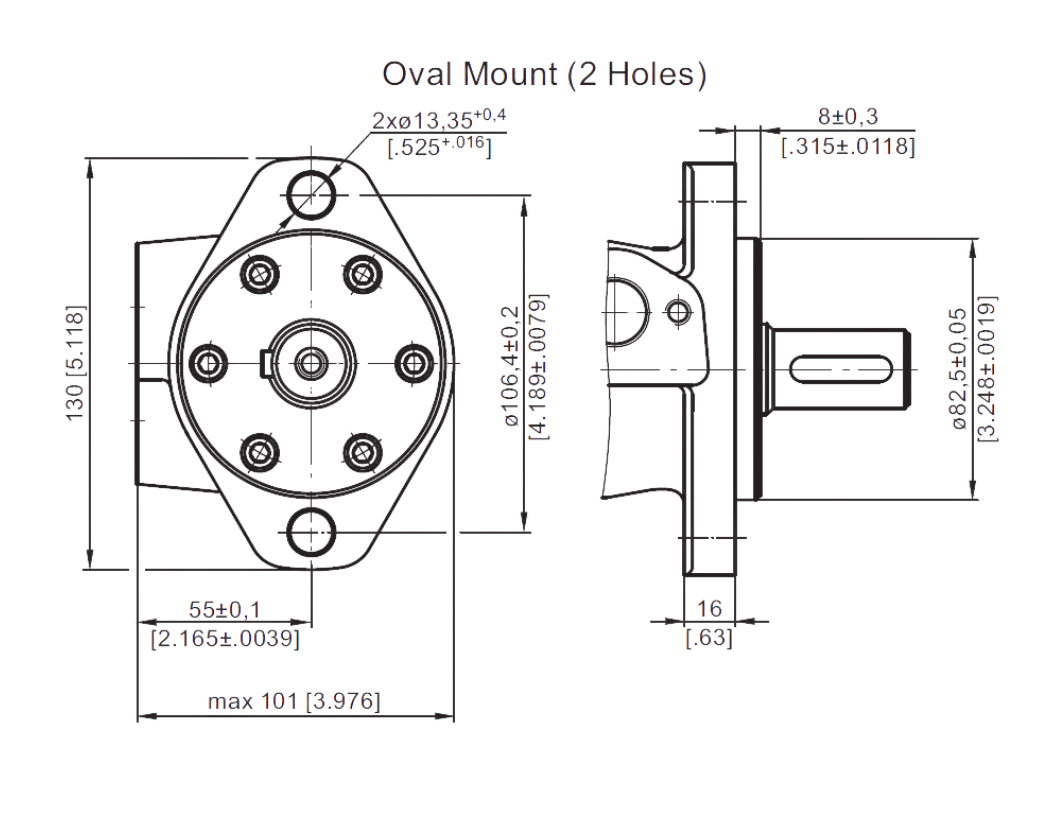

| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | M+S Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 80 |
| Shaft | 25.4mm |
