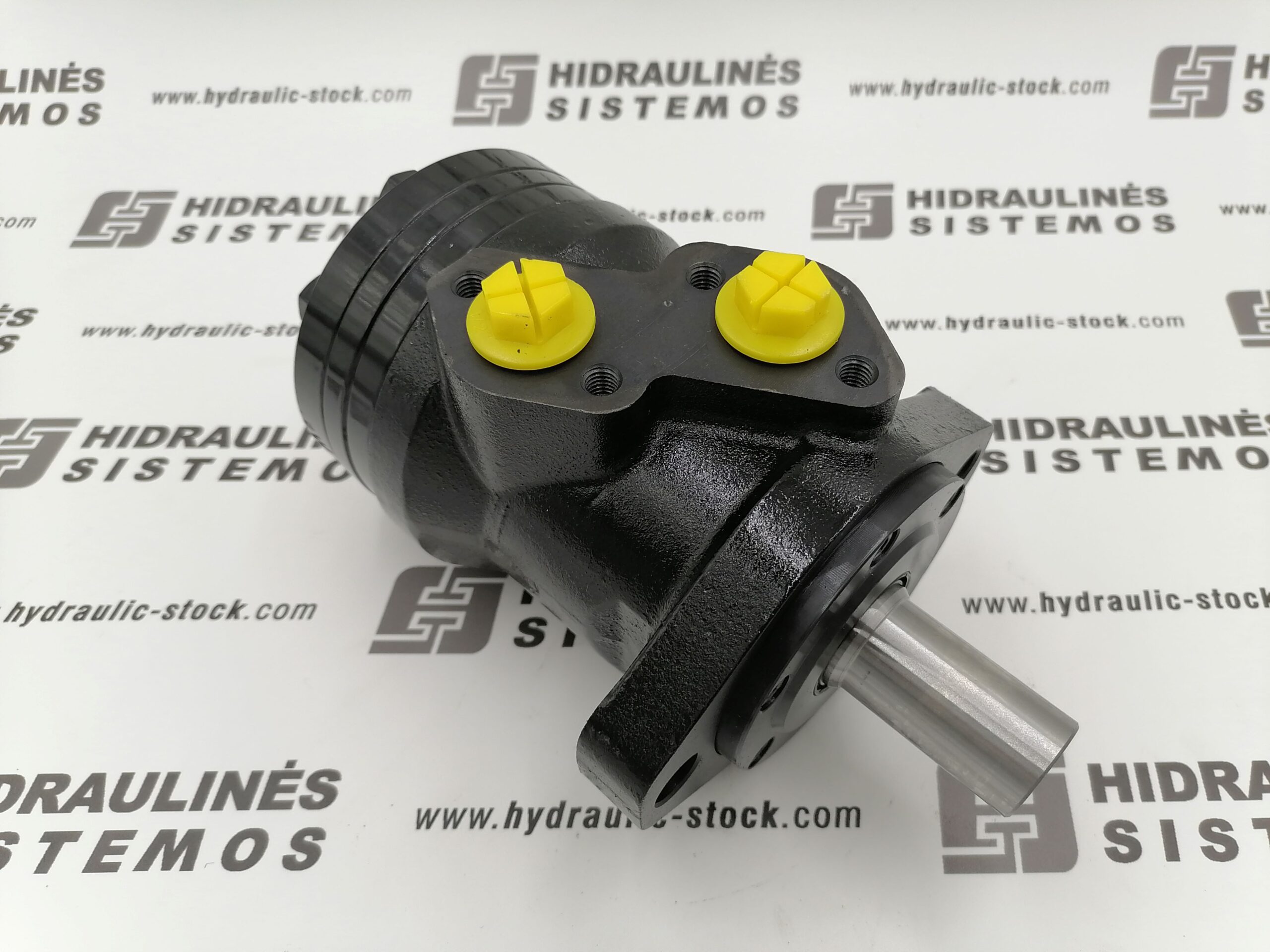

Hydraulic motor MR 050 C 25mm shaft, ziHYD BMRY-50 P41
Original price was: 155,00 €.125,00 €Current price is: 125,00 €. excl. VAT
EPRM050 MR50 OMR50 120101005050
3 in stock
EPRM050 MR50 OMR50 120101005050
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

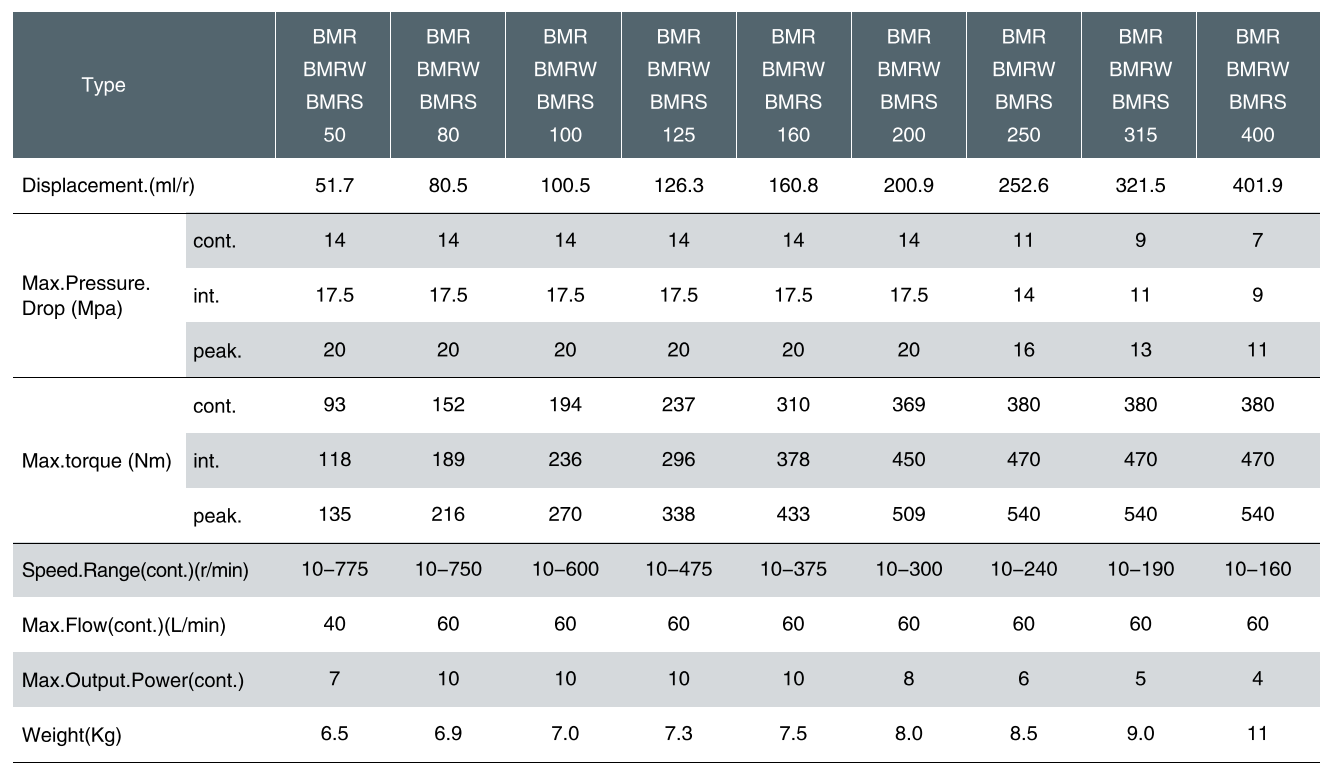

| Specification |
|---|
| Type: BMR-50 |
| Displacement: 51.7 ml/rev |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 20 MPa |
| Max. torque (continuous): 93 Nm |
| Max. torque (intermittent): 118 Nm |
| Max. torque peak: 135 Nm |
| Continuous speed range: 10–775 rpm |
| Max. flow (continuous): 40 l/min |
| Max. output power (continuous): 7 kW |
| Weight: 6.5 kg |
Additional information

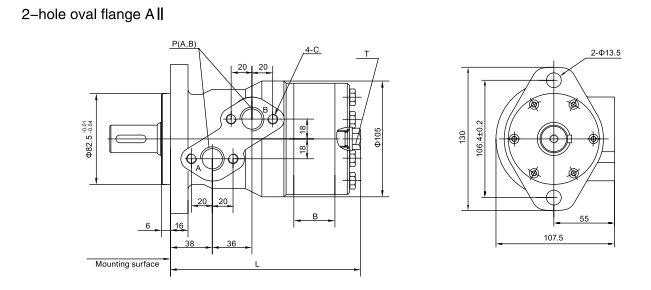

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 50 |

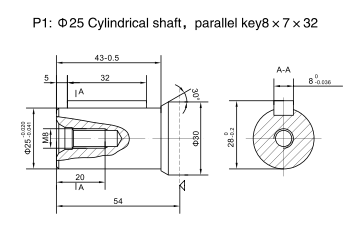

| Shaft | 25mm |
