Hydraulic motor MR 050 C 25mm shaft, MCS050 AA 02 AA110020A000B0
195,00 € excl. VAT
MCS050AA02AA110020A000B0 036-0037-002 OMR050 MR050 SMR050 BMR050 MMR050 EPRM050 51-0710, 151-0410, 151-3210, 151-0210
1 in stock
MCS050AA02AA110020A000B0 036-0037-002 OMR050 MR050 SMR050 BMR050 MMR050 EPRM050 51-0710, 151-0410, 151-3210, 151-0210
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Model code: MCS050AA02AA110020A000B00B |
| Motor series: XLS Series |
| Valve system: Spool valve |
| Orbital gearwheel set type: Geroler |
| Motor size: 50 |
| Geometric displacement: 50.4 cm³/rev [3.08 in³/rev] |
| Motor type: Standard |
| Motor function: Standard |
| Mounting flange type: 2-bolt – A |
| Mounting flange dimensions: 82.6 × 5.0 mm (pilot dia × height), bolt circle dia 106.4 mm, hole 13.5 mm [3.25 × 0.20 in, 4.19 in, 0.53 in] |
| Shaft type: Straight |

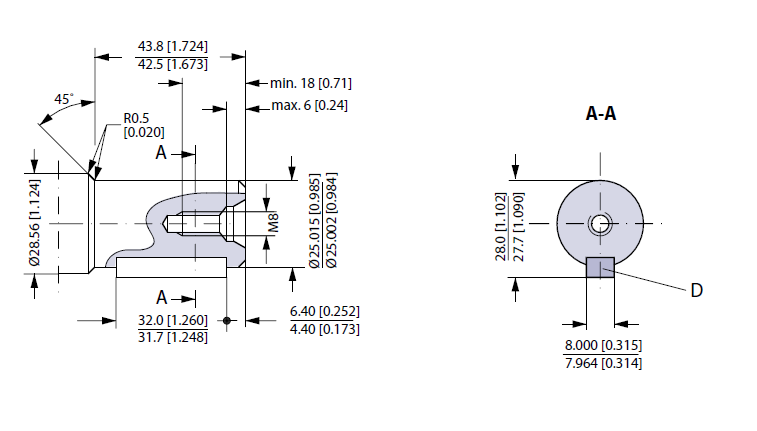

| Shaft dimensions: Diameter 25 mm, M8 thread in shaft end (special component) |
| Shaft key: Rectangular key A8 × 7 × 32 mm |
| Main port thread type: BSP |
| Main port style: Side port – staggered |
| Main port dimension: G 1/2, 4 × M8 block mounting threads |
| Drain port dimension: G 1/4 |
| Brake release port dimension: N/A |
| Painted: Yes |
| Paint information: Painted, blue |
| Special features assembly: Standard |
| Dust seal: Standard |
| Shaft seal: NBR – high pressure |
| Seal kit: Z331-59 |
| Front bearing type: Journal bearing |
| Rear bearing type: Journal bearing |
| Orbital gearwheel set: Standard |
| Check valve function: Yes |
| Hydraulic valve function: None |
| Sensor: None |
| Packaging: No data available |
| Name tag: Danfoss name tag |
| Brand: Danfoss |
| Product height: 3.700 in / 93.980 mm |
| Product length: 5.590 in / 141.986 mm |
| Product width: 5.120 in / 130.048 mm |
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 50 |
| Shaft | 25mm |
