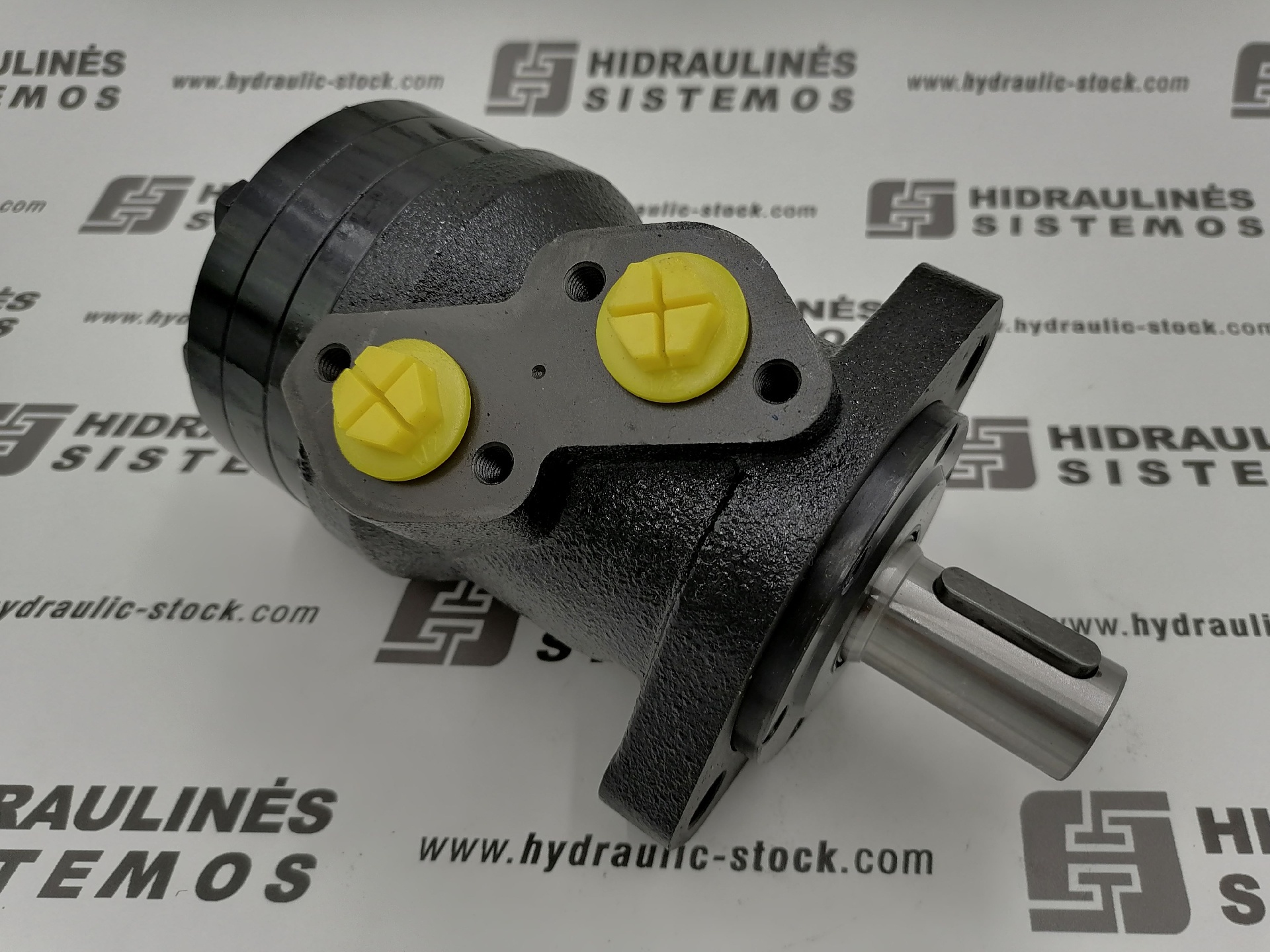

Hydraulic motor MR 036 C 25mm shaft
190,00 € excl. VAT
SMR36A225YGP 11185775 BMR-36-2-A-DH 1.37.10.036, 255040A6312BAAAAP, OMP 36, OMR36
1 in stock
SMR36A225YGP 11185775 BMR-36-2-A-DH 1.37.10.036, 255040A6312BAAAAP, OMP 36, OMR36
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Displacement: 36 cm³/rev |

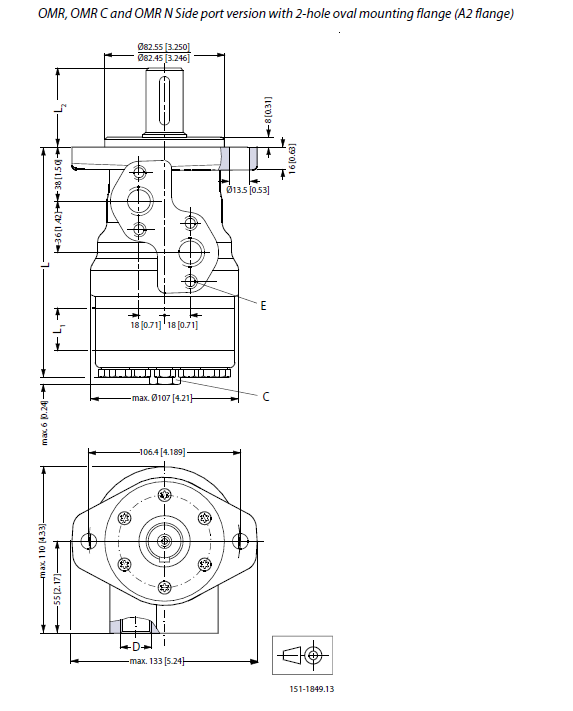

| Flange shape: Oval |
| Supplied with: Key |
| Flange code: – |
| Number of mounting holes: 2 |

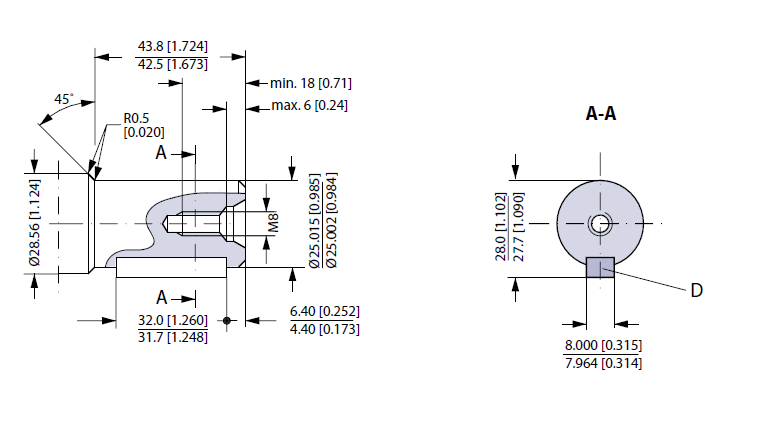

| Shaft type: Cylindrical |
| Shaft diameter: 25 mm |
| Max. continuous torque: 42 N·m |
| Max. continuous working pressure: 100 bar |
| Max. intermittent working pressure: 135 bar |
| Max. pressure peak: 160 bar |
| Max. flow rate: 35 l/min |
| Max. rotation speed: 1010 rpm |
| Min. rotation speed: 10 rpm |
| Main port thread diameter: 1/2 inch |
| Main port thread type: BSP |
| Drain port thread diameter: 1/4 inch |
| Drain port thread type: BSP |
| Port position: Side |
| Rotor length: 6 mm |
| Max. power: 3.7 kW |
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | gopart |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 36 |
| Shaft | 25mm |
