Hydraulic motor MP 200 C 25mm shaft, OMPX WH 11185752
450,00 € excl. VAT
11185752 , OMPX20011185752 , 11185755
Out of stock
11185752 , OMPX20011185752 , 11185755
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

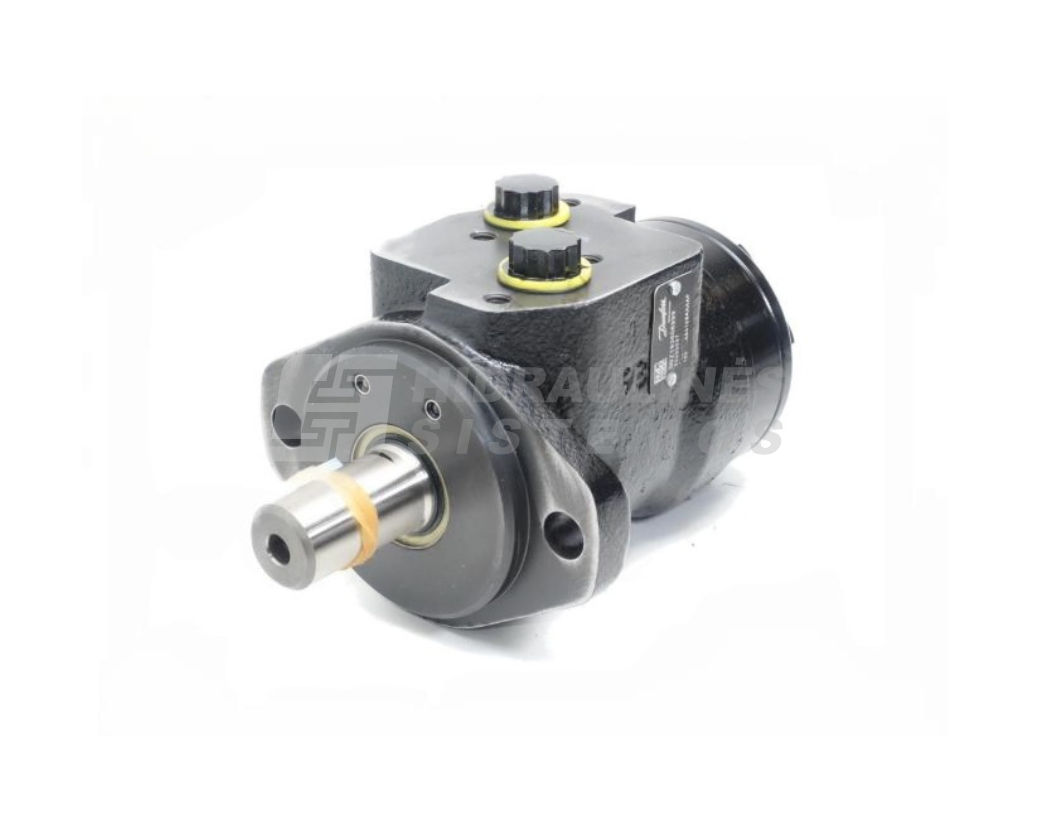

Orbital hydraulic motor OMP X 200, Ø25 mm shaft is a compact gerotor-type hydraulic motor designed for high torque output at low and medium speeds. Suitable for mobile and industrial hydraulic applications.

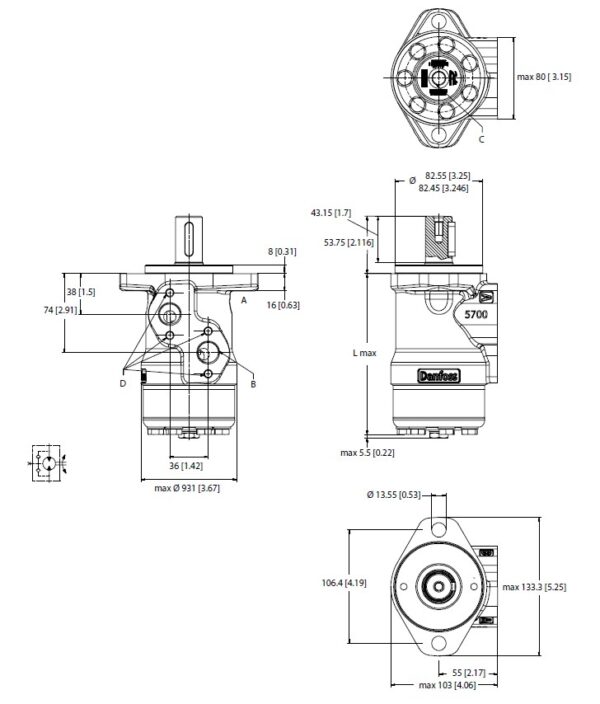

The motor features a Ø25 mm straight shaft with M8 internal thread, 2-bolt A mounting flange, and side hydraulic ports. The integrated HNBR shaft seal provides excellent pressure resistance and durability.
Application:
- Agricultural machinery
- Forestry equipment
- Conveyor and mechanism drives
- Mobile hydraulic systems
Technical specifications:
- Type: orbital hydraulic motor
- Series: OMP X
- OEM code: 11185752
- Displacement: 200 cm³/rev
- Design: gerotor type
- Shaft: Ø25 mm, straight
- Shaft thread: M8
- Key: A8 × 7 × 32 mm (DIN 6885)
- Mounting flange: 2 Bolt A
- Ports: G1/2, G1/4
- Port style: side ported
- Bearing type: journal bearing
- Shaft seal: HNBR, high pressure
- Drain port: end cover
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | White |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |
| Shaft | 25mm |
