Hydraulic motor MP 200 C 25mm shaft, OMP X 200 White

375,00 € excl. VAT

11185705, OMPX 200 White, HY18111

Out of stock

11185705, OMPX 200 White, HY18111

Enter your email address and we will notify you as soon as the item is available.
SKU: HMP200X Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

Product information

Specifications

Description

  • Series: OMP X (O-series)
  • Design: X
  • Displacement: 200 cm³/rev
  • Drain port: standard (end cover)
  • Dust seal: integrated in shaft seal (standard)
  • Front bearing: journal bearing
  • Model code: none
  • Mounting flange: 2 bolt (type A)
  • Mounting dimensions: pilot Ø82.5 x 8 mm; bolt circle Ø106.4 mm; holes Ø13.6 mm
  • Ports: G 1/2, G 1/4
  • Port style: end ported, aligned
  • Seal kit: 11188319

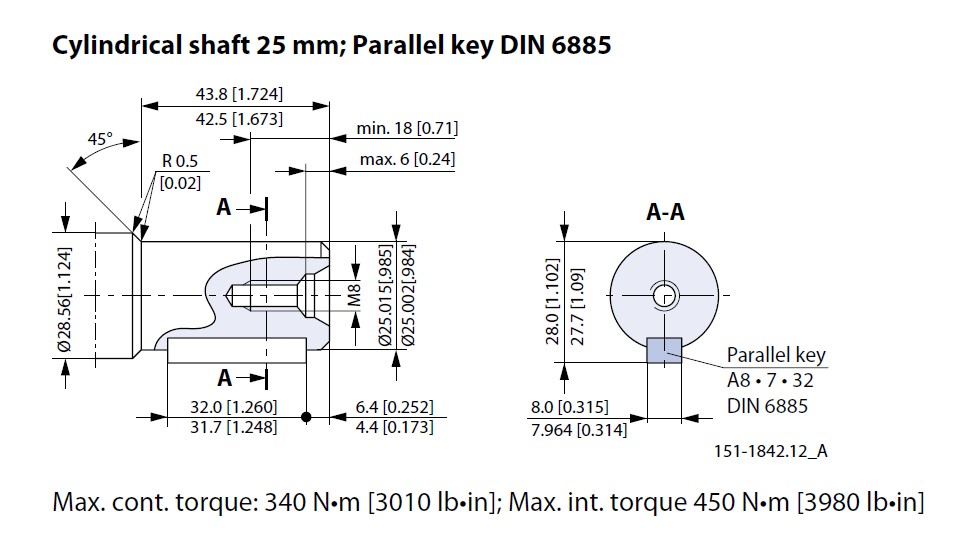

  • Shaft type: straight
  • Shaft size: Ø25 mm (M8 tap)
  • Shaft key: A8 x 7 x 32 mm (DIN 6885)
  • Shaft seal: HNBR (high pressure)
  • Additional information

    Flange

    82.5mm 106.4mm, 2 bolts

    Manufacturer

    White

    Connections

    BSP 1/2”

    Connection side/rear

    Rear

    Type

    Orbital (Gerotor)

    Volume

    200

    Shaft

    25mm
