Hydraulic motor MP 080 C 25mm shaft, OMPX 25 Danfoss
450,00 € excl. VAT
OMPX80 11186723
Out of stock
OMPX80 11186723
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Series: OMP X
Drain port style: Standard – end cover
Dust seal: Integrated in shaft seal, standard
Front bearing: Journal bearing
Mounting flange: 2 Bolt – A
Packaging: Single pack
Paint: Black – RAL 9005
Port dimensions: G 1/2, G 1/4
Port style: Side ported – offset manifold (4 × M8)
Displacement: 80 cm³/rev
Seal kit: 11188319
Series: O-Series
Shaft key: A8 × 7 × 32 mm (DIN 6885)
Shaft seal: HNBR – high pressure
Shaft size: Ø 25 mm – M8 tapped end
Shaft style: Straight
Design: X

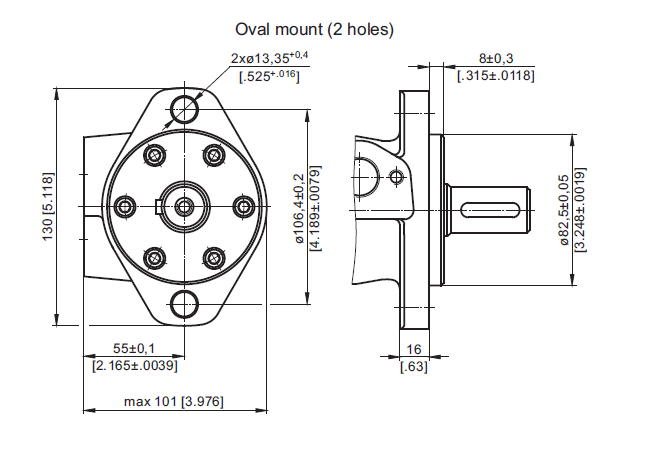

Mounting thread dimension: Pilot dia. 82.5 × 8 mm – bolt circle dia. 106.4 mm; hole dia. 13.6 mm
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Danfoss |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 80 |
| Shaft | 25mm |
