Hydraulic motor A2FM23/61W-VZB010 A
830,00 € excl. VAT
A2FM23/61W-VZB010 R902193539
Out of stock
A2FM23/61W-VZB010 R902193539
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

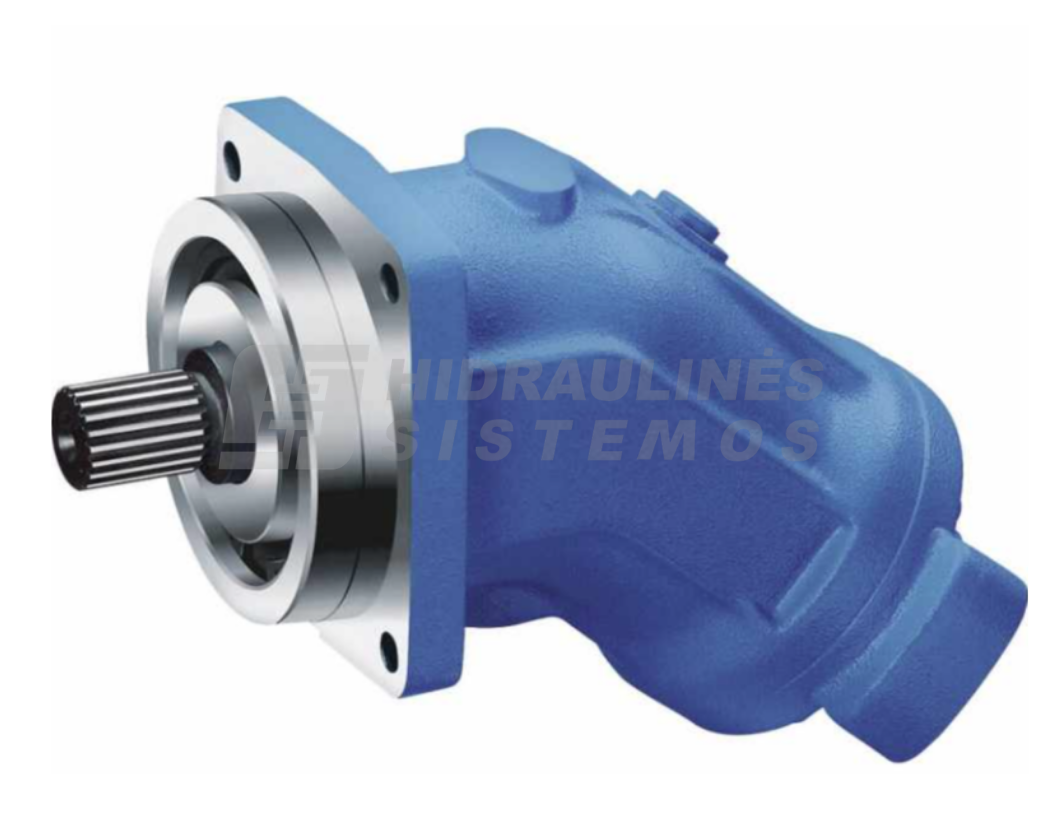

Bosch Rexroth A2FM23/61W-VZB010 (R902193539) is a fixed-displacement axial piston hydraulic motor designed for high-pressure mobile and industrial hydraulic drive applications.
The A2FM series uses a bent-axis design, providing a compact construction and high power density for demanding hydraulic applications. The A2FM23 has a displacement of approximately 22.9 cm³/rev (nominal size 23) and can be used in both open and closed hydraulic circuits. The exact Bosch Rexroth reference is R902193539, with type code A2FM23/61W-VZB010.
Technical Data
- Manufacturer: Bosch Rexroth
- Manufacturer part number: R902193539
- Type code: A2FM23/61W-VZB010
- Series: A2FM
- Series version: 61
- Type: Fixed-displacement axial piston hydraulic motor
- Design: Bent-axis
- Nominal size: 23
- Displacement: approx. 22.9 cm³/rev
- Nominal pressure: up to 400 bar
- Maximum pressure: up to 450 bar
- Circuit: Open and closed circuit
- Version: Metric
Features
- Fixed-displacement axial piston motor
- Bent-axis design
- Approx. 23 cm³/rev displacement
- Compact construction
- High power density
- Suitable for open and closed circuits
- Nominal pressure up to 400 bar
- Maximum pressure up to 450 bar
- Genuine Bosch Rexroth hydraulic motor
