Hydraulic cylinder 30/50-450, with bearings D25
280,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Hydraulic cylinder 30/50-60/450 with Ø25 mm bearings is a double-acting hydraulic cylinder designed for force transmission in hydraulic systems. Suitable for agricultural, industrial, and mobile equipment.

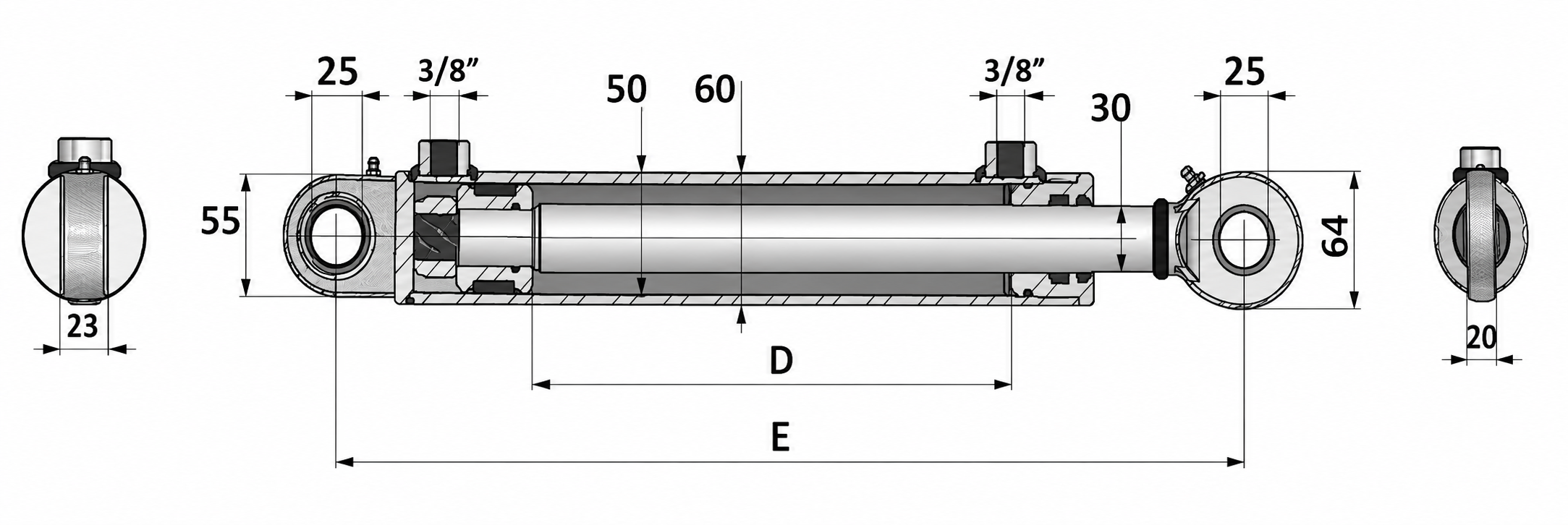

The cylinder features a 30 mm piston rod, 50 mm internal bore diameter, 60 mm outer tube diameter, and 450 mm stroke. Both ends are equipped with mounting bearings with Ø25 mm holes.
Application:
- Agricultural machinery
- Loaders and trailers
- Industrial mechanisms
- Mobile hydraulic systems
Technical specifications:
- Type: double-acting hydraulic cylinder
- Piston rod diameter: 30 mm
- Internal cylinder bore diameter: 50 mm
- Outer cylinder diameter: 60 mm
- Stroke: 450 mm
- Mounting holes / bearings: Ø25 mm
-
Mounting width:
- one side: 23 mm
- opposite side: 20 mm
- Ports: 3/8″
- Design: bearing-mounted ends
- Function: linear force transmission
