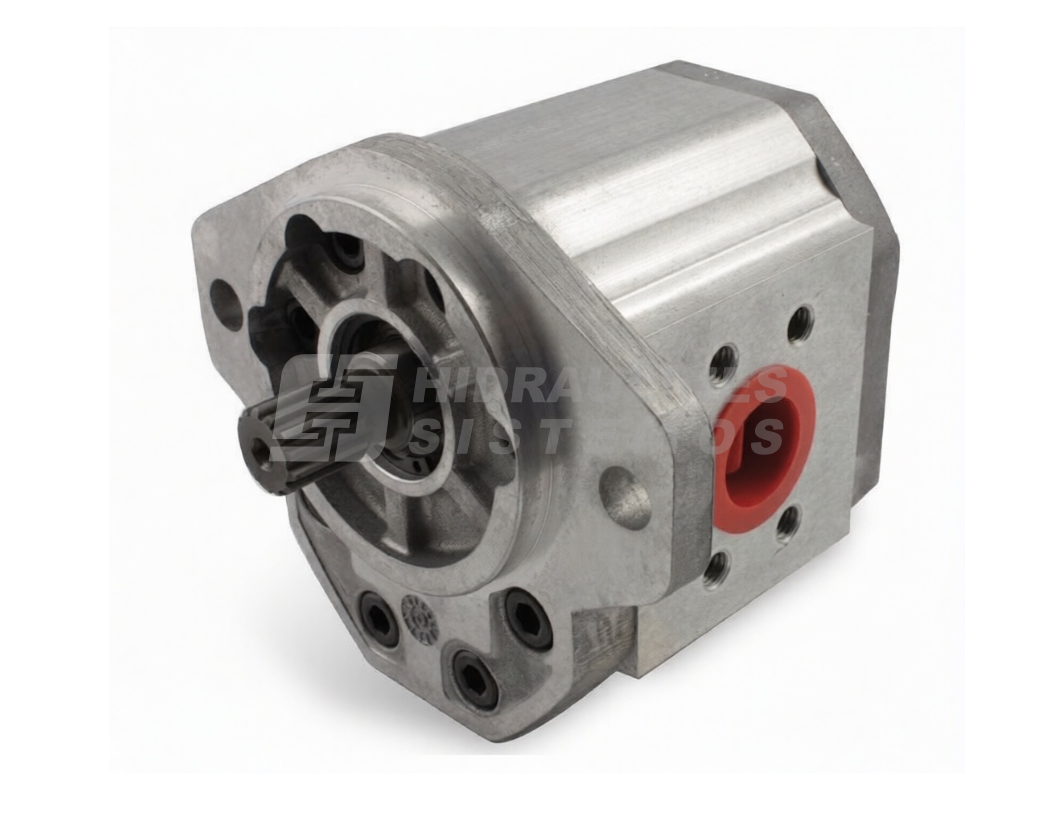

GR3 38.0 cm3/r gear pump SAE/B 16/32(14)-G SNP3C38LSSEB
795,00 € excl. VAT
P338D93EGS SNP3/C38LSSEB
Out of stock
P338D93EGS SNP3/C38LSSEB
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Group: Size 3
Displacement: 37.9 cm³
Rotation direction: Clockwise (Right)
Front flange: SAE-B, 2-bolt, pilot Ø101.6 mm
Drive shaft type: Splined
Drive shaft dimensions: SAE B, 13 teeth DP16/32
Flange type: SAE (rectangular UNC bolts)
Suction port: 59 × 30 (7/16″-14 UNC thread)
Pressure port: 52 × 26 (3/8″-16 UNC thread)
Brand / Manufacturer: Sauer Danfoss
Additional information
| Group | Group 3 |
|---|---|
| Direction | Right-hand |
| Inlet | SAE3000 1’1/4” (59mm×30mm) |
| Outlet | SAE3000 1” (52mm×26mm) |
| Connections | SAE flange |
| Connection side/rear | Side |
| Front cover | SAE-B |
| Pressure | 250bar |
| Volume | 38.0 |
| Shaft | 16/32 13 teeth 21.8mm |
| Single / Tandem | Single |
