GR2 14.0 cm3 gear pump XV-2P/14 cm3/rev HY50 X2P4922FSRA

205,00 € excl. VAT

X2P4922FSRA XV-2P/14 cm3/rev HY50

Out of stock

X2P4922FSRA XV-2P/14 cm3/rev HY50

Enter your email address and we will notify you as soon as the item is available.
SKU: 24922 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

Product information

Specifications

Description

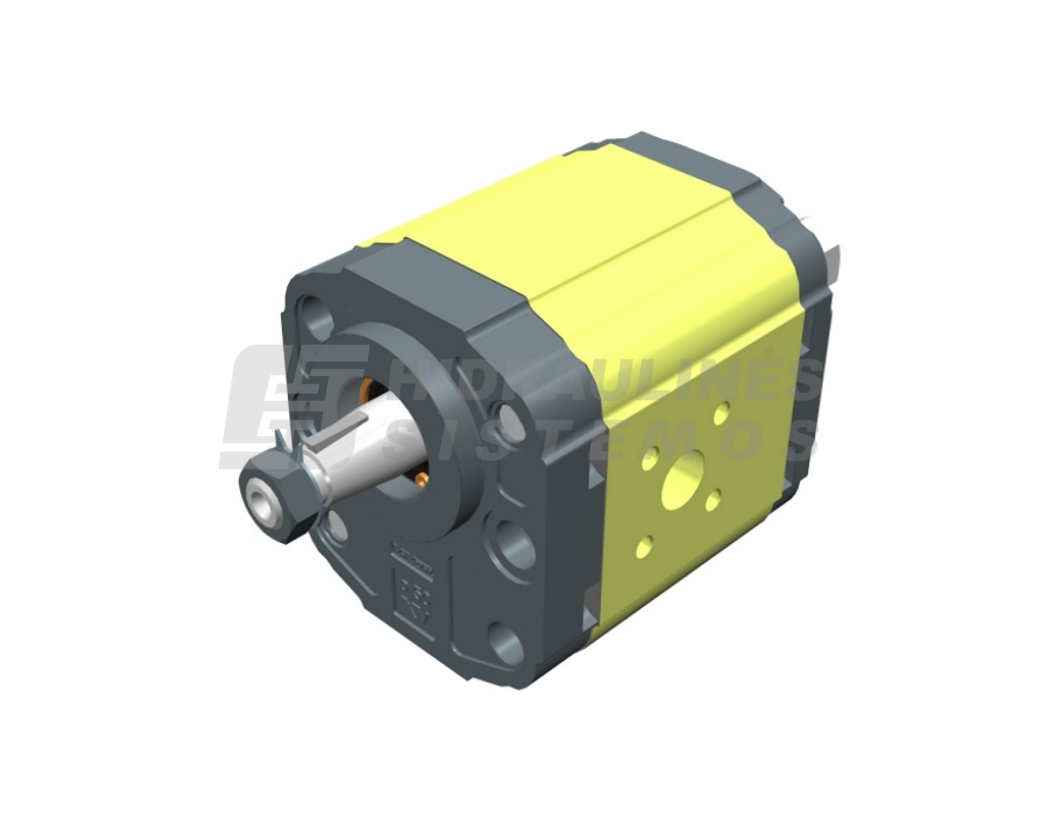

Vivoil XV-2P/14 X2P4922FSRA is a Group 2 unidirectional hydraulic gear pump designed for mobile and industrial hydraulic systems.

The pump features a 14.4 cm³/rev displacement and clockwise (right-hand) rotation. This configuration is equipped with an HY Ø50 front flange, 1:5 tapered drive shaft, and German-standard rectangular flange connections.

According to the XV-2P technical data, the 14.4 cm³/rev version is rated for a maximum continuous pressure of 250 bar (P1) and a peak pressure of 290 bar (P3).

Technical Data

  • Manufacturer: Vivoil / Vivolo
  • Part number: X2P4922FSRA
  • Series: XV
  • Model: XV-2P/14
  • Group: Group 2 / GR2
  • Type: Unidirectional hydraulic gear pump
  • Displacement: 14.4 cm³/rev
  • Rotation: Clockwise / right-hand
  • Maximum continuous pressure (P1): 250 bar
  • Maximum peak pressure (P3): 290 bar
  • Front flange: HY Ø50
  • Drive shaft: F – tapered 1:5

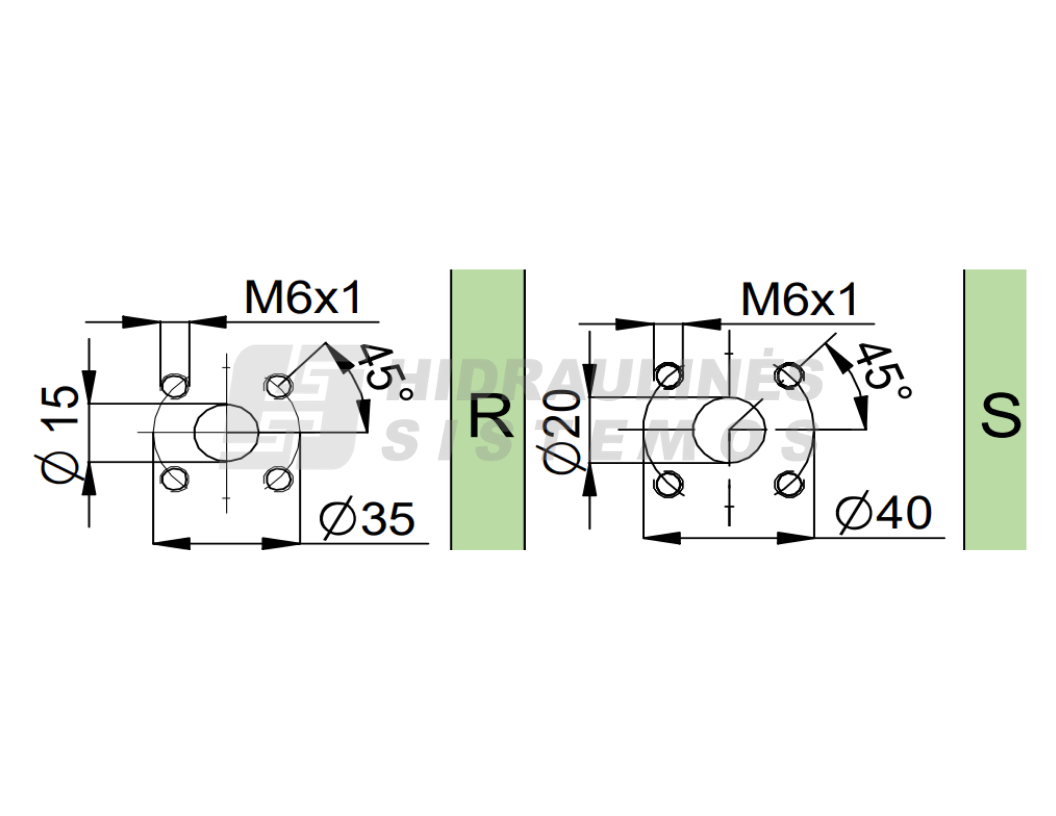

  • Oil connections: Rectangular flange, German standard
  • Seals: NBR
  • Housing / covers: Aluminium
  • Weight: approx. 2.6 kg

Features

  • Group 2 hydraulic gear pump
  • 14.4 cm³/rev displacement
  • Clockwise rotation
  • HY Ø50 mounting flange
  • 1:5 tapered drive shaft
  • Up to 250 bar continuous operating pressure
  • Up to 290 bar peak pressure
  • Compact aluminium construction
  • Suitable for mobile and industrial hydraulic systems

Additional information

Grupė

Group 2

Kryptis

Right-hand

Matmuo įėjimo (įsiurbimo)

40mm

Matmuo išėjimo (slėgiminė)

35mm

Pajungimai

Flange German / Bosch

Pajungimai Galas/Šonas

Side

Priekinis dangtelis

B50 Bosch

Slėgis

250bar

Darbinis tūris, cm³/aps.

14.0

Velenas

1/5 Group 2 tapered

Viengubas / Dvigubas

Single
