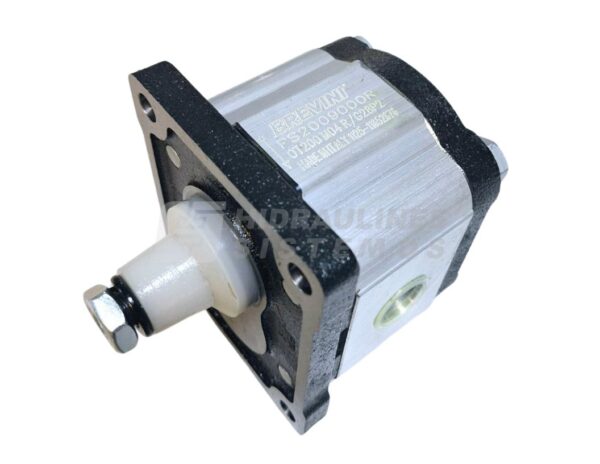

GR2 04.0 cm3/r gear motor D-E 1:8(10)-G Brevini
255,00 € excl. VAT
220000200045, OT200 M4 R/G28 P2
Out of stock
220000200045, OT200 M4 R/G28 P2
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
This is an external gear hydraulic motor designed to convert hydraulic energy into mechanical rotation in mobile and industrial systems. It is used in hydraulic systems to generate torque (e.g., in conveyors, fans, sweepers, agricultural and construction machinery). Ensures reliable operation under high loads.
Technical data:
- Type: GR2 (Group 2) hydraulic motor
- Displacement: 4.0 cm³/rev
- Maximum working pressure: up to ~250 bar
- Peak pressure: up to ~300 bar
- Max. speed: up to ~4000 rpm
Additional information
| Group | Group 2 |
|---|---|
| Direction | Right-hand |
| Inlet | BSP 1/2” |
| Outlet | BSP 1/2” |
| Connections | Thread |
| Connection side/rear | Side |
| Front cover | European |
| Pressure | 250bar |
| Volume | 04.0 |
| Shaft | 1/8 Group 2 tapered |
| Single / Tandem | Single |
