Gearbox T-27A, 1:1.47 40.4kW Comer
Gearbox T-27A, 1:1.47 40.4kW Comer
Add to wishlist

Gearbox T-27A, 1:1.47 40.4kW Comer

Full product specification

531,00 € excl. VAT

1 in stock

SKU: 267046 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

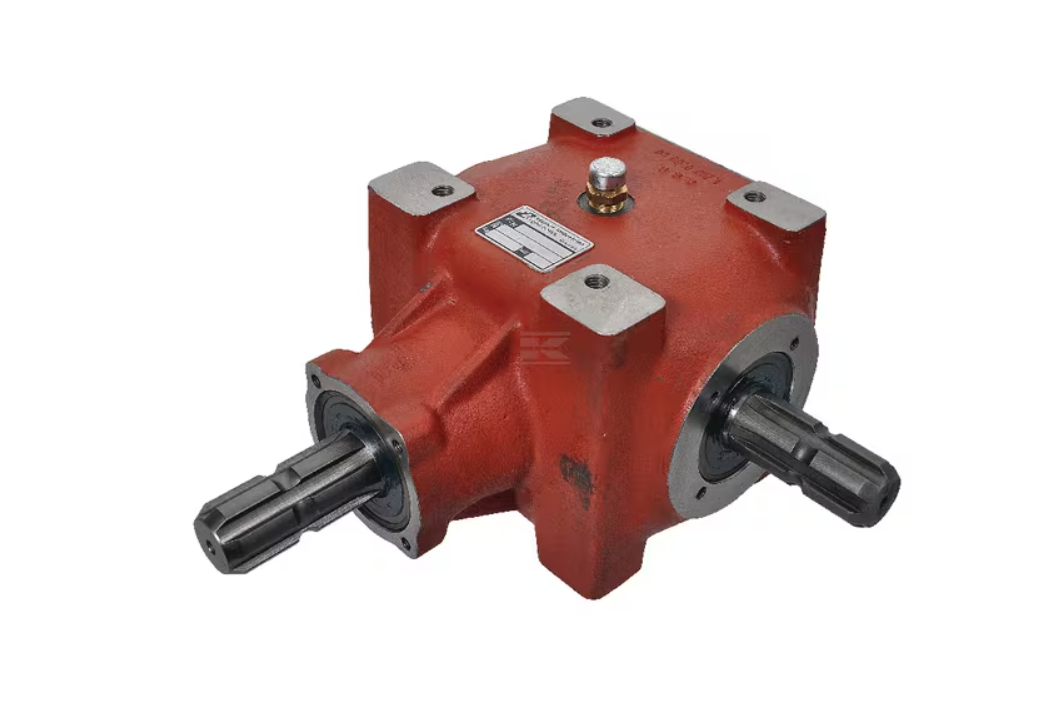

Comer T-27A is an angular three-shaft gearbox designed for power transmission in various agricultural and industrial applications. The gearbox features one input shaft and two output shafts, allowing power to be transmitted in two directions.

The transmission ratio is 1.47:1, the specified input speed is 1000 rpm, rated input power is 40.4 kW, and rated output torque is 547 Nm. All three shafts are 1 3/8″ Z6 .

The T-27A can be used in various agricultural applications, fertiliser spreaders, multi-row rotary tillers, band saws and other machinery requiring angular power transmission.

The gearbox is supplied without oil.

Technical Data

  • Manufacturer: Comer
  • Model: T-27A
  • Part number: 267046
  • Comer code: 9.267.046.00
  • Ratio: 1.47:1
  • Input shaft: 1 3/8″ Z6
  • Output shaft 1: 1 3/8″ Z6
  • Output shaft 2: 1 3/8″ Z6
  • Rated input power: 40.4 kW
  • Input speed: 1000 rpm
  • Maximum output power: 38.3 kW / 52 HP
  • Maximum output torque: 547 Nm
  • Housing material: GG25 cast iron
  • Oil grade: SAE 80W-90
  • Oil capacity: 1.2 L
  • Supplied with oil: No
  • Weight: 21 kg
