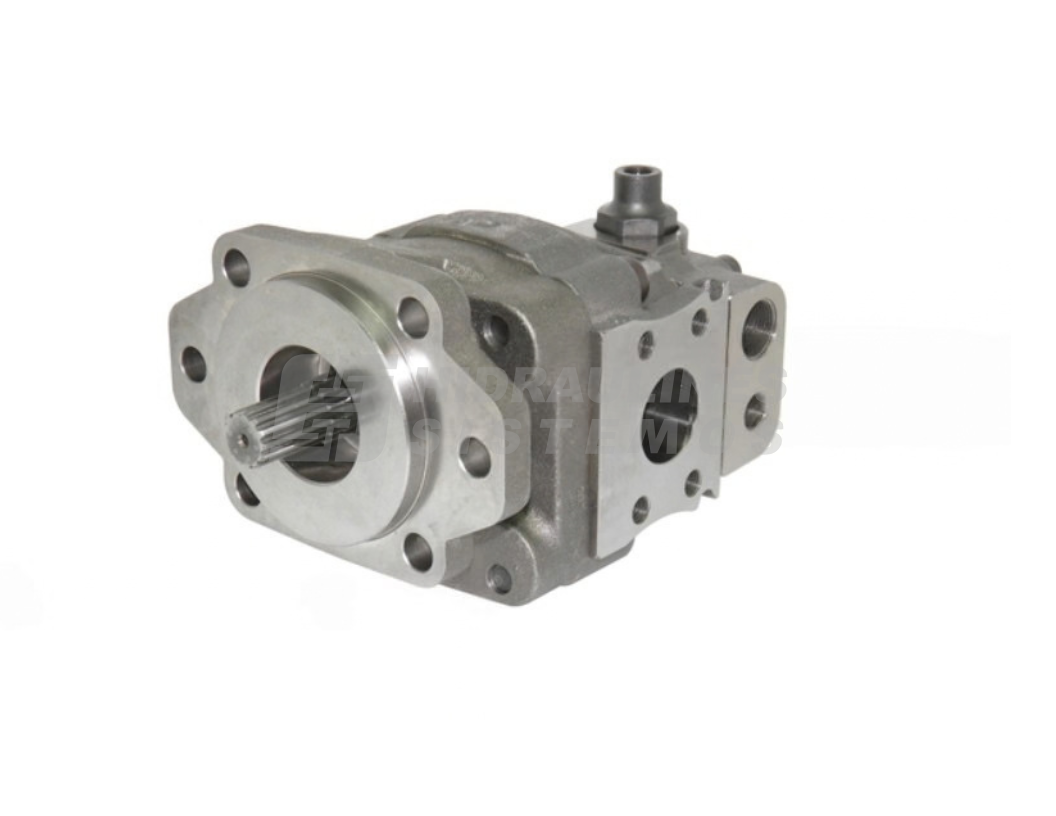

Gear pump KP30.38S0-04S3-LME/GC/GE/B-N-LA Casappa
668,00 € excl. VAT
Manitou 03580501; Casappa 0357001L; front flange SAE-B ø101.6 [146mm]; 39.27 cm³; CCW; shaft SAE-B 13T [ø21.8]
Out of stock
Manitou 03580501; Casappa 0357001L; front flange SAE-B ø101.6 [146mm]; 39.27 cm³; CCW; shaft SAE-B 13T [ø21.8]
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
KP30 Series hydraulic gear pump designed to supply hydraulic oil flow in mobile hydraulic systems.
The pump displacement is 39.27 cm³/rev. and the direction of rotation is counter-clockwise (CCW). It features an SAE-B Ø101.6 mm mounting flange and a 13-tooth, Ø21.8 mm splined drive shaft.
This pump is also used in Manitou applications; associated reference numbers include Casappa 0357001L and Manitou 03580501. Hydroportal
Technical Data
- Manufacturer: Casappa
- Model: KP30.38S0-04S3-LME/GC/GE/B-N-LA
- Casappa part number: 0357001L
- Type: hydraulic gear pump
- Series: KP30
- Displacement: 39.27 cm³/rev.
- Rotation: counter-clockwise (CCW)
- Mounting flange: SAE-B, Ø101.6 mm
- Shaft: 13-tooth splined
- Shaft diameter: Ø21.8 mm
- Manitou reference number: 03580501
