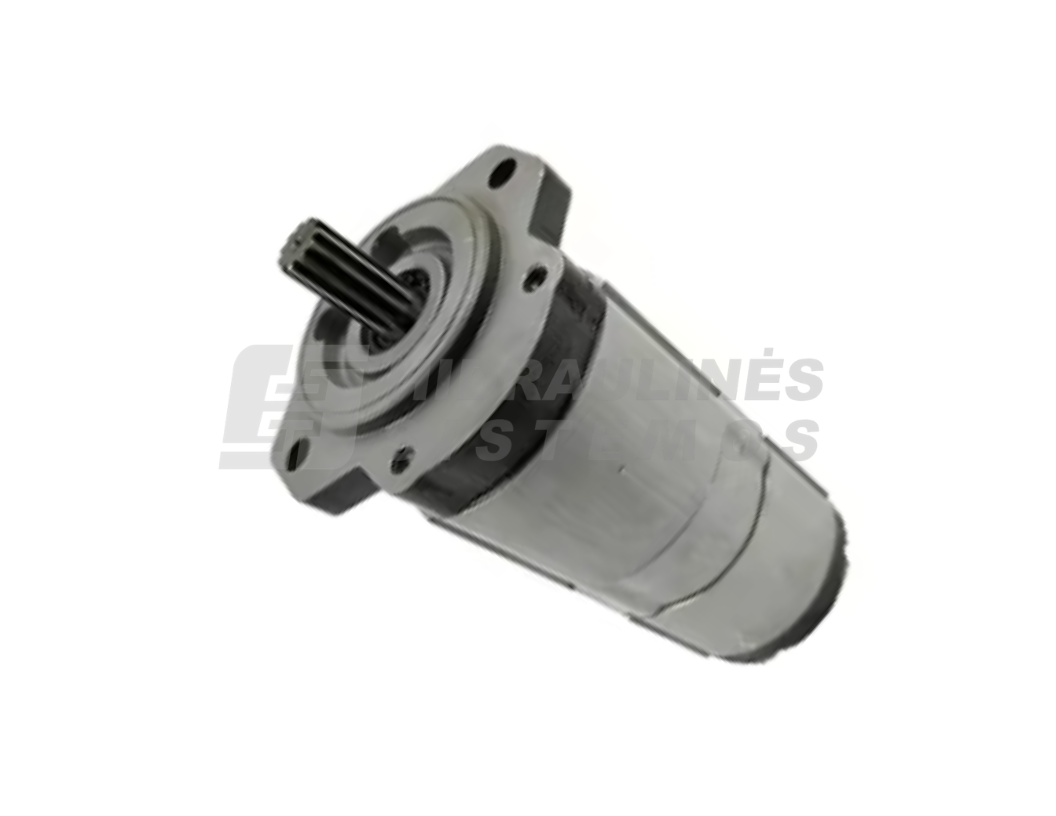

Gear pump Casappa PLP20.20-04S5/20.16 S/FS-L
700,00 € excl. VAT
Out of stock
Product information
Description
Casappa PLP20.20-04S5/20.16 S/FS-L is a two-section tandem hydraulic gear pump consisting of PLP20.20 and PLP20.16 pump sections. The tandem design allows two separate hydraulic oil flows to be supplied from a single pump assembly for different hydraulic system functions.
The PLP20.20 first section has a displacement of 21.14 cm³/rev, while the PLP20.16 second section has a displacement of 16.85 cm³/rev. The combined geometric displacement of both sections is 37.99 cm³/rev. The PLP20.20 section is rated for up to 200 bar continuous and 240 bar peak pressure, while the PLP20.16 section is rated for up to 250 bar continuous and 300 bar peak pressure. Maximum speed for both sizes is 3000 rpm.
Technical Data
- Manufacturer: Casappa
- Series: PLP20
- Model: PLP20.20-04S5/20.16 S/FS-L
- Type: Double / tandem hydraulic gear pump
- Number of sections: 2
- 1st section: PLP20.20
- 1st section displacement: 21.14 cm³/rev
- 1st section continuous pressure: up to 200 bar
- 1st section peak pressure: up to 240 bar
- 2nd section: PLP20.16
- 2nd section displacement: 16.85 cm³/rev
- 2nd section continuous pressure: up to 250 bar
- 2nd section peak pressure: up to 300 bar
- Combined geometric displacement: 37.99 cm³/rev
- Maximum speed: 3000 rpm
Additional information
| Group | Group 2 |
|---|---|
| Direction | Left-hand |
| Inlet | 40mm |
| Outlet | 30mm |

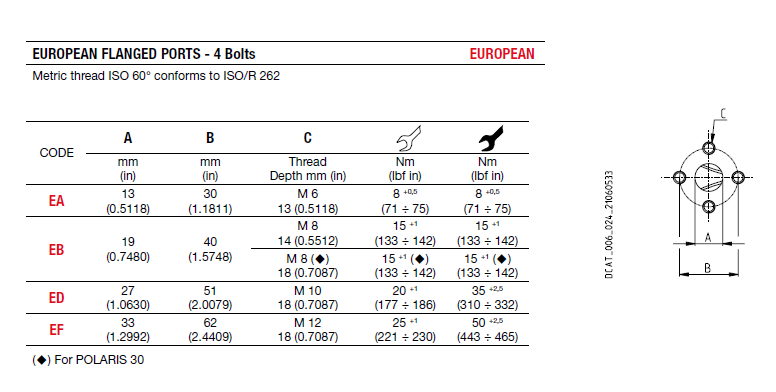

| Connections | Flange Italian / Diamond |
| Connection side/rear | Side |

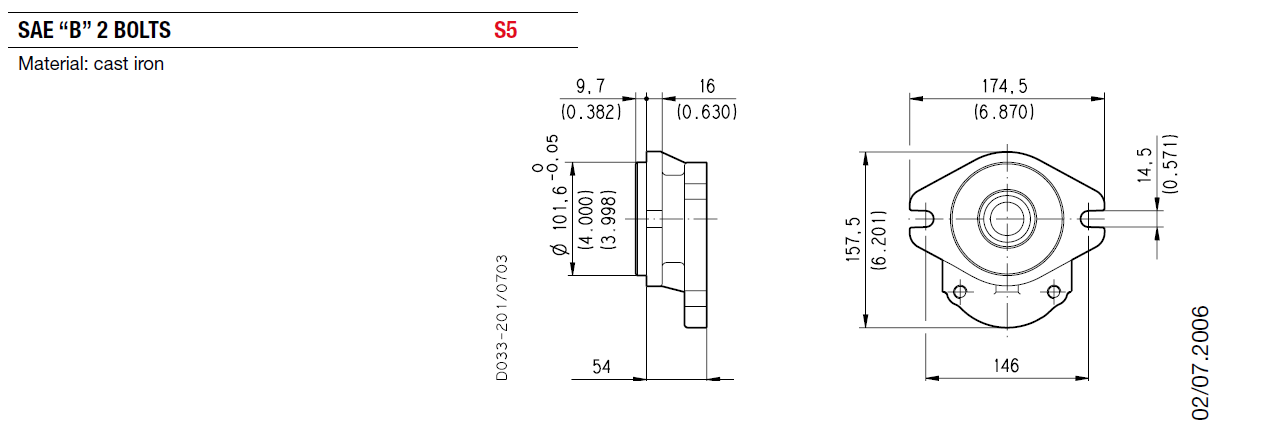

| Front cover | SAE-B |
| Volume | 20 |
| Volume 2 | 16 |

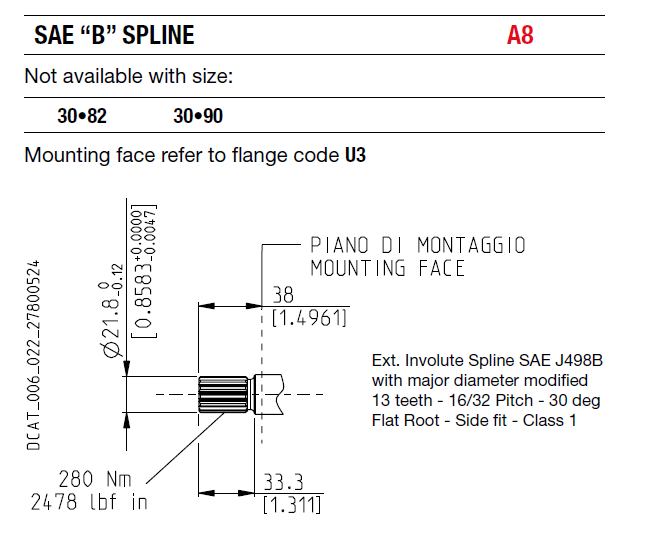

| Shaft | 16/32 13 teeth 21.8mm |
| Single / Tandem | Dvigubas |
