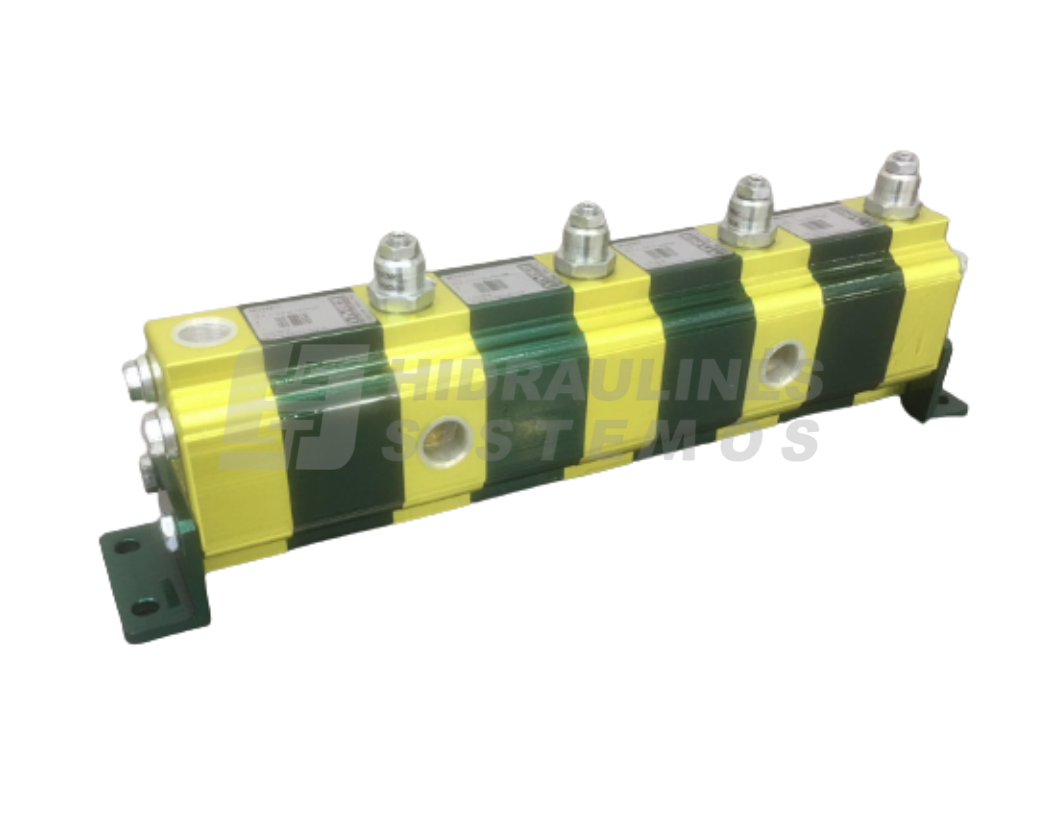

Vivoil RV-1V is a four-section gear flow divider designed to divide hydraulic oil flow into four flows. Each section has a displacement of 4.3 cm³/rev.

Each section is equipped with independent phase correction and anticavitation valves. This configuration is suitable for hydraulic systems requiring synchronised operation of multiple actuators, such as hydraulic cylinders.

Technical Data

  • Manufacturer: Vivoil
  • Series: RV-1V Swallow Line
  • Type: Gear flow divider
  • Number of sections: 4
  • Displacement: 4 × 4.3 cm³/rev
  • Maximum operating pressure: 220 bar
  • Recommended flow per section: 9.5 l/min
  • Flow range per section: 4.5–23 l/min
  • Valves: Independent phase correction and anticavitation valves on each section
  • Outlet ports: G3/8
  • Inlet port: G1/2
  • Standard drain: External G1/2
  • Oil filtration: 10–25 μm
  • Recommended oil viscosity: 20–40 cSt
  • Oil temperature: +30…+60 °C
  • Ambient temperature: –10…+60 °C
