FL INTERLOCK SFL 71,6 (2′) 2′ žarnai 90 SAE 3000, M43390-32-32
115,00 € excl. VAT
M43390-32-32
2 in stock
M43390-32-32
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

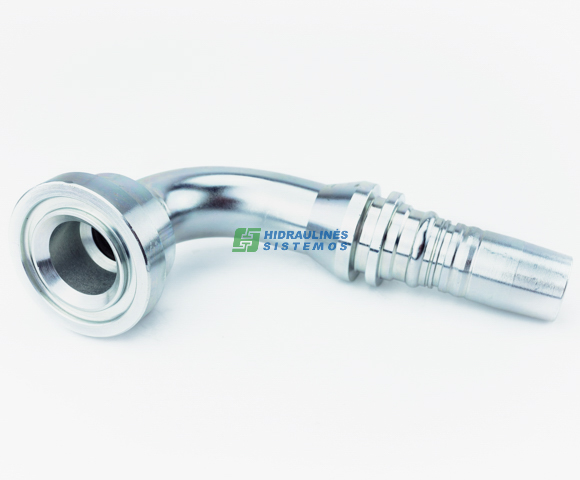

Manuli M43390-32-32 is a 90° INTERLOCK hydraulic hose fitting with an SFL / SAE Code 61 (SAE 3000) flange connection. It is designed for DN51 (2″, -32) hydraulic hose. The flange size is 2″, with a D dimension of 71.6 mm.
The INTERLOCK design provides a secure connection with compatible high-pressure spiral hydraulic hoses. The 90° configuration is suitable for installations where an angled connection is required due to limited space or hose routing.
Technical Data
- Manufacturer: Manuli
- Part number: M43390-32-32
- Series: INTERLOCK PLUS
- Fitting type: 90°
- Hose size: DN51 / 2″ / -32
- Flange type: SFL / SAE Code 61
- Flange size: 2″
- Flange D dimension: 71.6 mm
- Pressure class: SAE 3000
- B: 42.0 mm
- A: 133.5 mm
- E: 99.0 mm
- Standard: SAE J516 / ISO 12151-3
Additional information
| Fitting angle | 90 |
|---|---|
| Group | INTERLOCK NOZZLE |
| Thread size | SFL 71,6 (2′) |
| Thread type | Flanšas SAE |
