FL INTERLOCK SFL 60.5 (1-1/2″) 0° fitting for 1-1/2″ hose DN38 SAE 3000, M43310-24-24
45,00 € excl. VAT
M43310-24-24
2 in stock
M43310-24-24
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

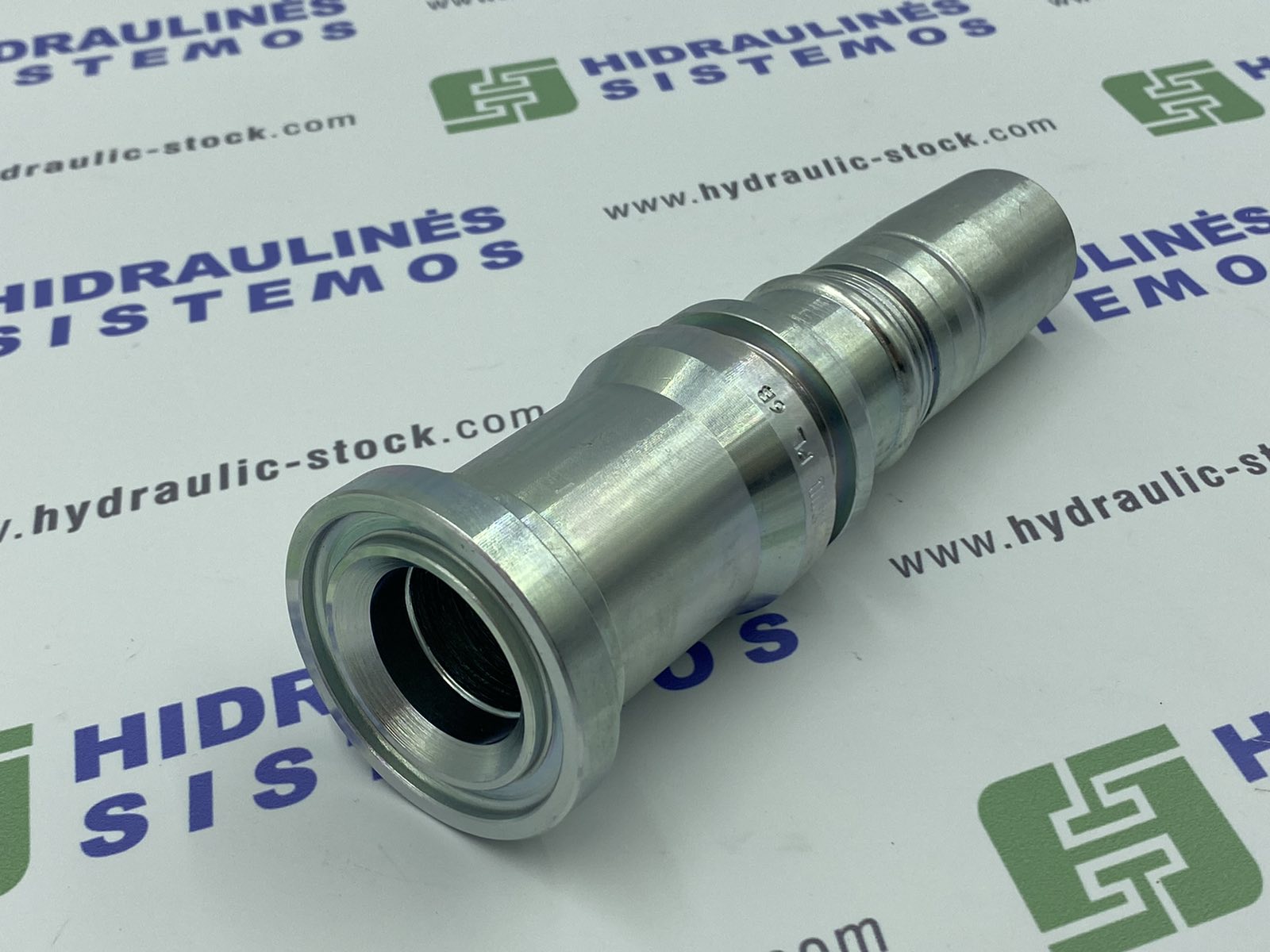

Manuli M43310-24-24 is a straight Interlock Plus hydraulic hose fitting with an SAE Code 61 flange connection, designed for DN38 (1 1/2″, -24) hydraulic hose.
The fitting is used in hydraulic systems where the hose is connected to a component via an SAE Code 61 flange connection. The Interlock Plus design is intended for use with compatible high-pressure spiral hydraulic hoses.
Technical Data
- Manufacturer: Manuli
- Part number: M43310-24-24
- Series: Interlock Plus
- Type: Straight hydraulic hose fitting
- Hose size: DN38
- Hose size: 1 1/2″
- Dash size: -24
- Connection: SAE Code 61 flange
- Flange size: 1 1/2″
- Standard: SAE J516 / ISO 12151-3
- B: 32.1 mm
- A: 80.5 mm
- D: 60.5 mm
Additional information
| Group | INTERLOCK NOZZLE |
|---|---|
| Thread size | SFL 60,3 (1’1/2′) |
| Thread type | Flanšas SAE |
| Size of hose | DN38 1-1/2′ |
