Filter element P566216 Donaldson
190,00 € excl. VAT
P566216
Out of stock
P566216
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

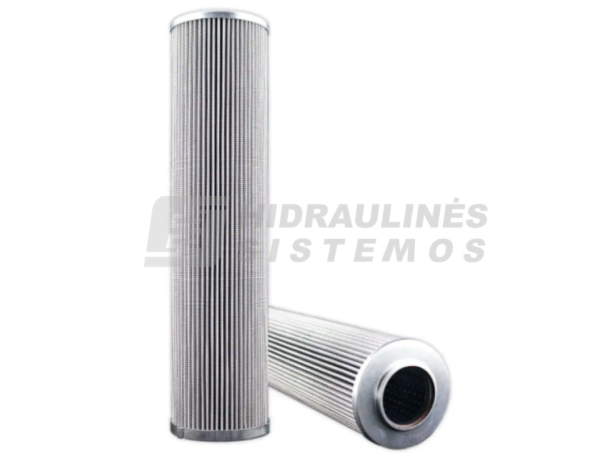

Donaldson P566216 is a DT-series hydraulic filter element designed for hydraulic oil filtration. It uses Donaldson Synteq™ DT synthetic filter media, providing high filtration efficiency and dirt-holding capacity.
Technical Data
- Manufacturer: Donaldson
- Part number: P566216
- Type: Hydraulic Filter, Cartridge DT
- Series: DT
- Filter media: Synteq™ DT synthetic
- Filtration efficiency: 8 µm @ βₓ(c)=1000
- Outside diameter: 78.84 mm
- Inside diameter: 41.15 mm
- Overall length: 327.8 mm
- Seal material: Viton® / fluorocarbon
- Collapse/Burst pressure: 20 bar (290 psi)
- Flow direction: Outside to inside
