END OF STROKE VALVE WITH CAM 14700506 HYVA
END OF STROKE VALVE WITH CAM 14700506 HYVA
END OF STROKE VALVE WITH CAM 14700506 HYVA
END OF STROKE VALVE WITH CAM 14700506 HYVA
Add to wishlist

END OF STROKE VALVE WITH CAM 14700506 HYVA

Full product specification

97,68 € excl. VAT

14700506

1 in stock

14700506

SKU: 14700506 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

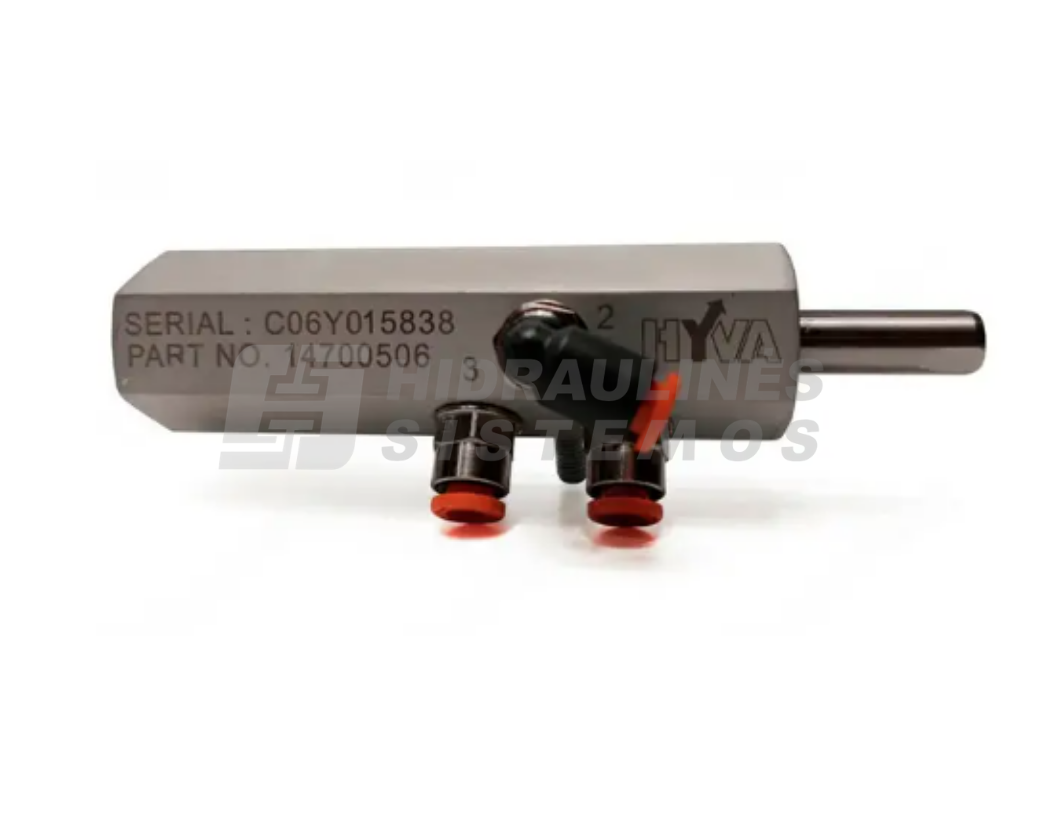

HYVA 14700506 is a pneumatic knock-off valve designed for tipper truck lifting systems. The valve is connected to the pneumatic tipping control line and limits the tipping angle before the telescopic cylinder reaches the end of its stroke. This prevents unnecessary pressurisation of the cylinder and hydraulic system when the cylinder approaches full extension.

14700506 is the standard HYVA version supplied with a mounting bracket for installation on the cylinder cradle. The activation point can be adjusted using the adjustable bolt, allowing the knock-off point to be set according to the tipping system. The pneumatic connections are designed for Ø6 mm air tubing.

Technical Data

  • Manufacturer: HYVA
  • Part number: 14700506
  • Type: Pneumatic Knock-Off Valve
  • Version: Standard
  • Supplied with: Mounting bracket
  • Mounting: On cylinder cradle
  • Maximum working pressure: 10 bar
  • Air tube size: Ø6 mm
  • Stroke: 15 mm
  • Operating temperature: –40 to +80 °C
  • Weight incl. bracket: 0.6 kg
  • Adjustable bolt length: 18 mm
