Electric motor 400/690V 3.0kW OMT4 100L2-4 B35 PTC
Electric motor 400/690V 3.0kW OMT4 100L2-4 B35 PTC
Add to wishlist

Electric motor 400/690V 3.0kW OMT4 100L2-4 B35 PTC

285,00 € excl. VAT

ø28/250; IP55; RAL7031; 1420 rpm; IE3; OMEC

Out of stock

ø28/250; IP55; RAL7031; 1420 rpm; IE3; OMEC

Enter your email address and we will notify you as soon as the item is available.
SKU: 13221 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

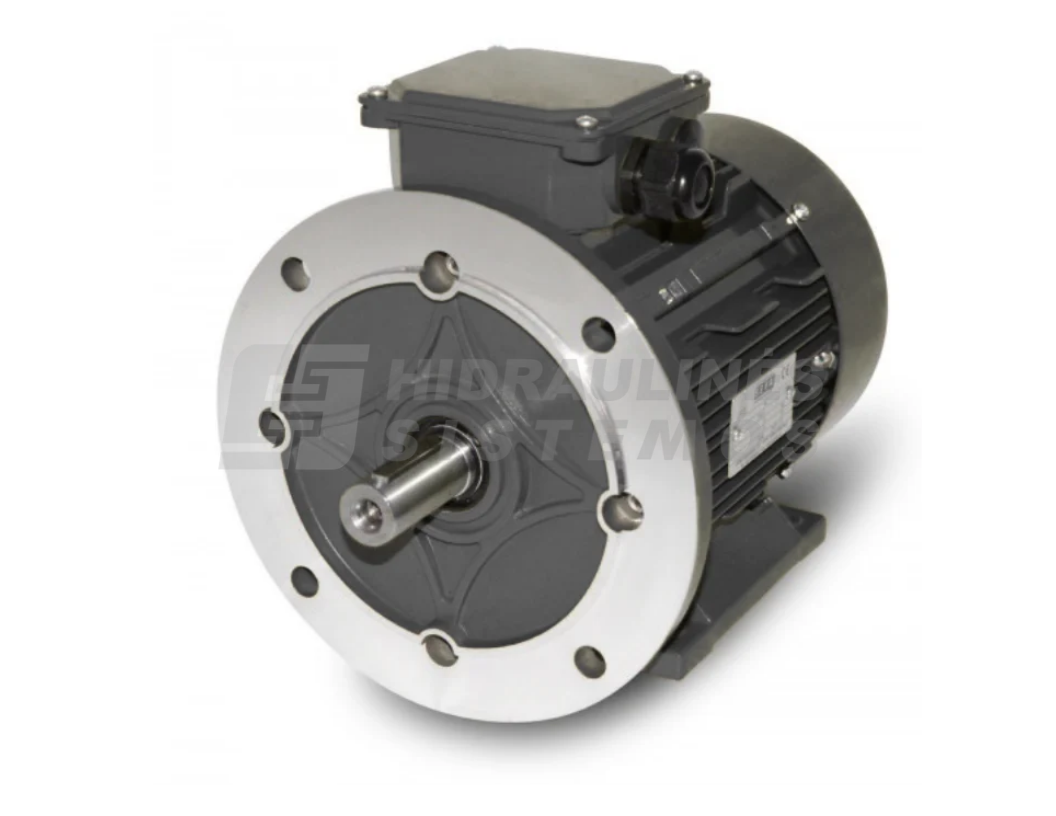

OMEC OMT4 100L2-4 is a three-phase 4-pole asynchronous electric motor with a rated output of 3 kW and rated voltage of 400/690 V. The B35 mounting arrangement combines feet and a flange, making the motor suitable for a wide range of industrial drives and machinery.

The motor features PTC winding temperature sensors, IP55 protection and class F insulation. The shaft diameter is 28 mm.

Technical Data

  • Manufacturer: OMEC
  • Series: OMT4
  • Model: 100L2-4
  • Type: Three-phase asynchronous electric motor
  • Rated power: 3.0 kW
  • Rated voltage: 400/690 V
  • Frequency: 50 Hz
  • Number of poles: 4
  • Rated speed: 1420 rpm
  • Mounting: B35 – foot and flange mounted
  • Shaft diameter: Ø28 mm
  • Protection rating: IP55
  • Insulation class: F
  • Temperature protection: PTC
  • Colour: RAL 7031
