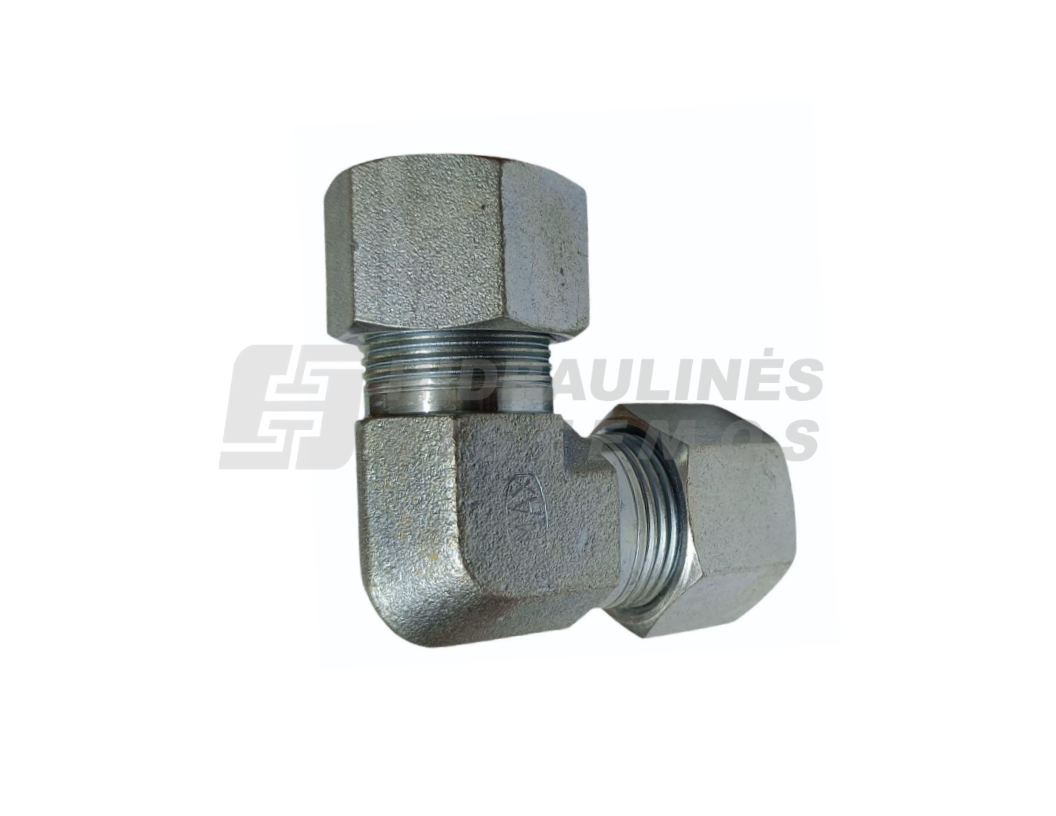

Elbow M42i (S30) x M42i (S30) (pipe-pipe)
40,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

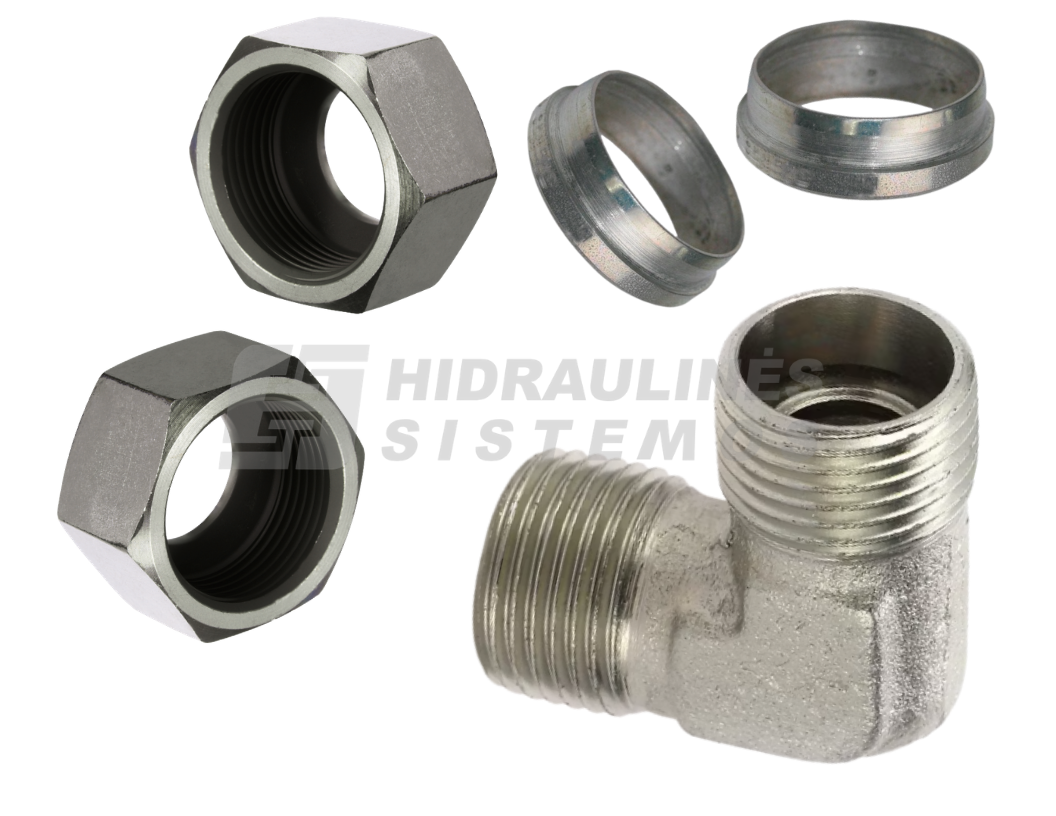

The 90° elbow design allows two tubes of the same diameter to be connected while changing the direction of the hydraulic line. The fitting is supplied with cutting rings and nuts required to secure the tubes and create a tight connection with the fitting body.
Technical Data
- Part number: AM42S30
- Type: 90° hydraulic tube fitting
- Tube outside diameter: 30 mm
- Size: 30S
- Series: S (Heavy Series)
- Thread: M42×2
- Number of connections: 2
- Supplied with: Cutting rings and nuts
- Application: Connecting Ø30 mm hydraulic tubes at a 90° angle
Additional information
| Group | Alkūnė |
|---|---|
| Male/Female 1 thread | Išorinis |
| Male/Female 2 thread | Išorinis |
| Angle | 90 |
| Measurement system 1 | Metrinis |
| Measurement system 2 | Metrinis |
| Thread 1 | M42x2(S30) |
| Thread 2 | M42x2(S30) |
