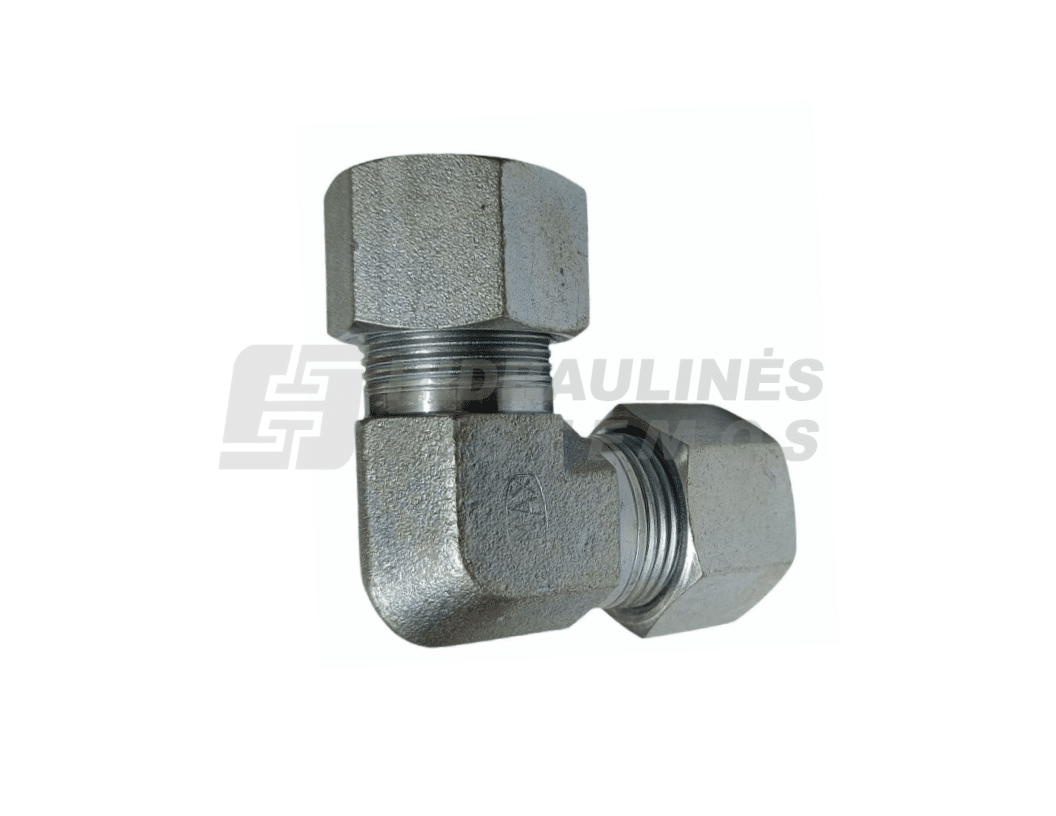

Elbow M22i (L15) x M22i (L15) (pipe-pipe)
0,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

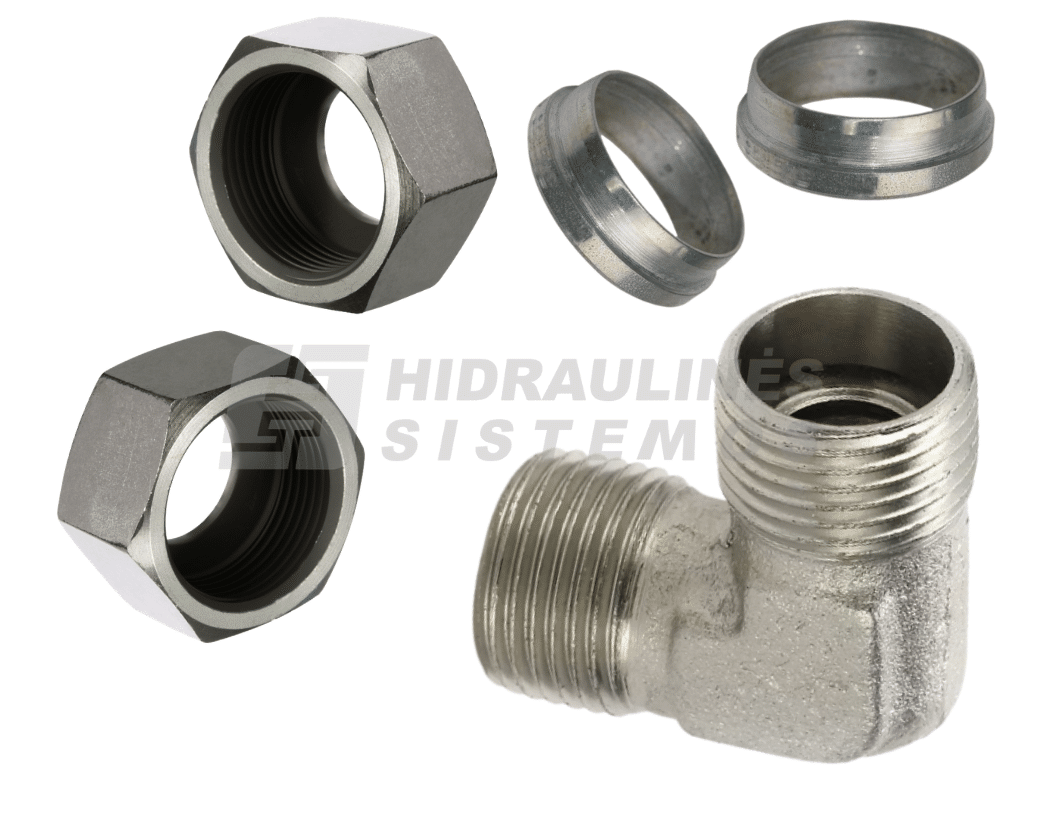

The elbow design allows two tubes to be connected at an angle, changing the direction of the hydraulic line and providing convenient installation where space is limited. The supplied cutting rings and nuts are used to secure the tubes and create a tight connection with the fitting body.
Technical Data
- Type: 90° hydraulic tube fitting
- Tube outside diameter: 15 mm
- Series: 15L (Light Series)
- Thread: M22×1.5
- Number of connections: 2
- Supplied with: Cutting rings and nuts
- Application: Connecting 15 mm hydraulic tubes at a 90° angle
Additional information
| Group | Alkūnė |
|---|---|
| Male/Female 1 thread | Išorinis |
| Male/Female 2 thread | Išorinis |
| Angle | 90 |
| Measurement system 1 | Metrinis |
| Measurement system 2 | Metrinis |
| Thread 1 | M22x1,5 (L15) |
| Thread 2 | M22x1,5 (L15) |
