Dual counter-balance valve 20l/min 1/4″ FL Schneebichler

155,00 € excl. VAT

Dual counter-balance valve 20l/min 1/4″ FL Schneebichler

Out of stock

Dual counter-balance valve 20l/min 1/4″ FL Schneebichler

Enter your email address and we will notify you as soon as the item is available.
SKU: DK103960 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

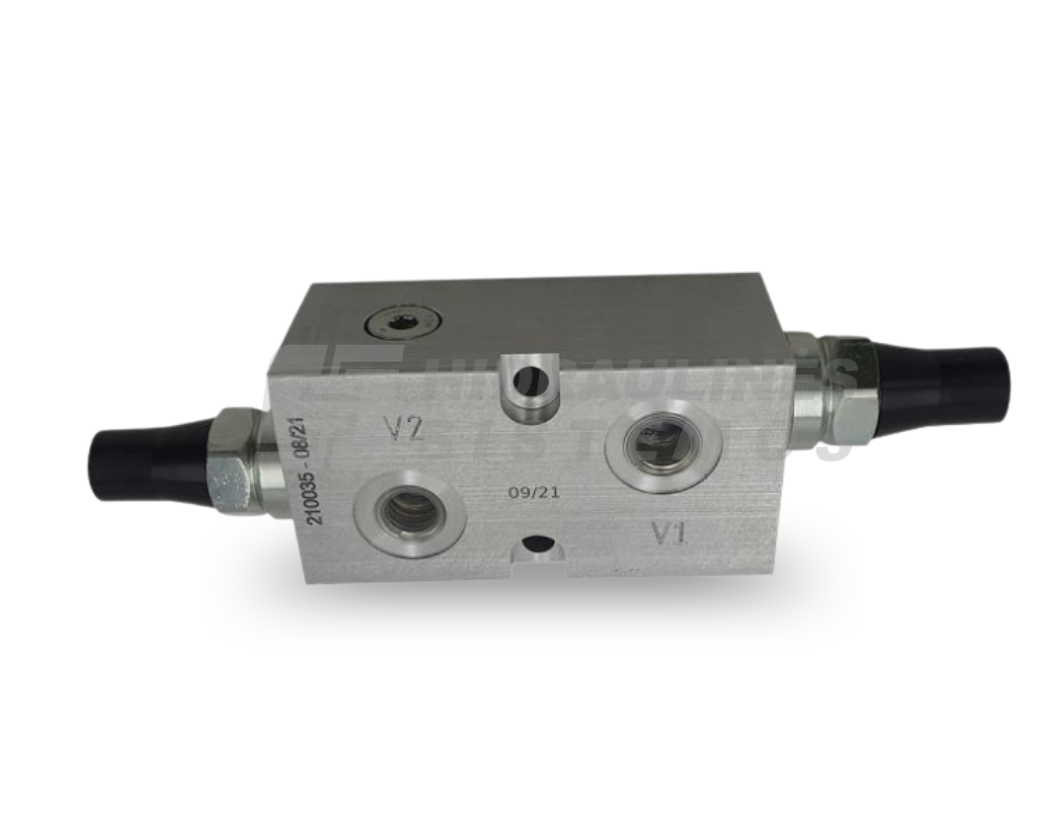

Schneebichler 103-960 double counterbalance valve is designed for load control in double-acting hydraulic actuators and cylinders. A counterbalance valve helps hold a load in position and controls actuator movement when an external load tends to drive the actuator faster than the supplied hydraulic flow.

The double configuration provides load control in both directions of actuator movement, making this type of valve suitable for lifting equipment, booms, manipulators and other mobile hydraulic applications requiring controlled load movement and load holding.

Schneebichler 103-960 is specified for a flow rate of 20 l/min and features 1/4″ hydraulic connections.

Technical data

  • Manufacturer: Schneebichler
  • Part number: 103-960
  • Type: Double counterbalance valve
  • Flow rate: 20 l/min
  • Connection size: 1/4″
  • Function: Bidirectional load control
  • Application: Load holding and controlled actuator movement
