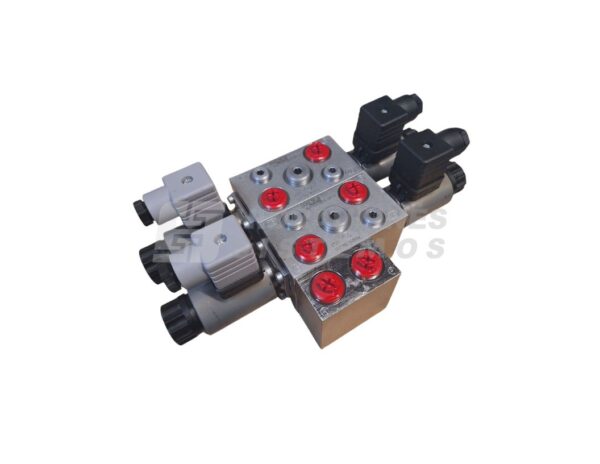

Control valve 2 sec. 20 lpm 1/4” BSP 400 bar with lock HAWE

1350,00 € excl. VAT

10002115.HW BVH 11 A 5

1 in stock

10002115.HW BVH 11 A 5

Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

Product information

Specifications

Description

HAWE BVH 11 two-section hydraulic directional valve bank designed to control the direction of hydraulic oil flow. The valve bank allows independent control of two hydraulic circuits and is suitable for various industrial hydraulic applications.

The assembly consists of two directional valve sections connected in parallel. The valves provide zero internal leakage in the closed position, helping ensure reliable operation of hydraulic mechanisms.

The HAWE BVH 11 features a compact modular design that allows different valve sections to be combined according to system requirements. The valve bank is equipped with G1/4 (BSPP) threaded connections and supports a maximum hydraulic oil flow rate of 20 l/min. The BVH 11 series has a maximum pressure rating of 400 bar at port P, although the permissible operating pressure of a specific configuration depends on the installed valves and their actuation type.

Technical Data

Parameter

Value

Product code

496781

Manufacturer

HAWE Hydraulik

Series

BVH 11

ERP model designation

10002115.HW BVH 11 A 5

Type

Hydraulic directional valve bank

Valve type

Hydraulic directional valves

Number of sections

2

Maximum flow rate

20 l/min

Maximum pressure at port P (series rating)

400 bar

Maximum pressure at port R

50 bar

Connection thread

G1/4 (BSPP)

Thread standard

ISO 228-1

Design

Modular, sectional

Housing material

Zinc-nickel coated steel

Hydraulic fluid temperature

–25 to +80 °C

Ambient temperature

–40 to +80 °C

Application

Hydraulic circuit control
