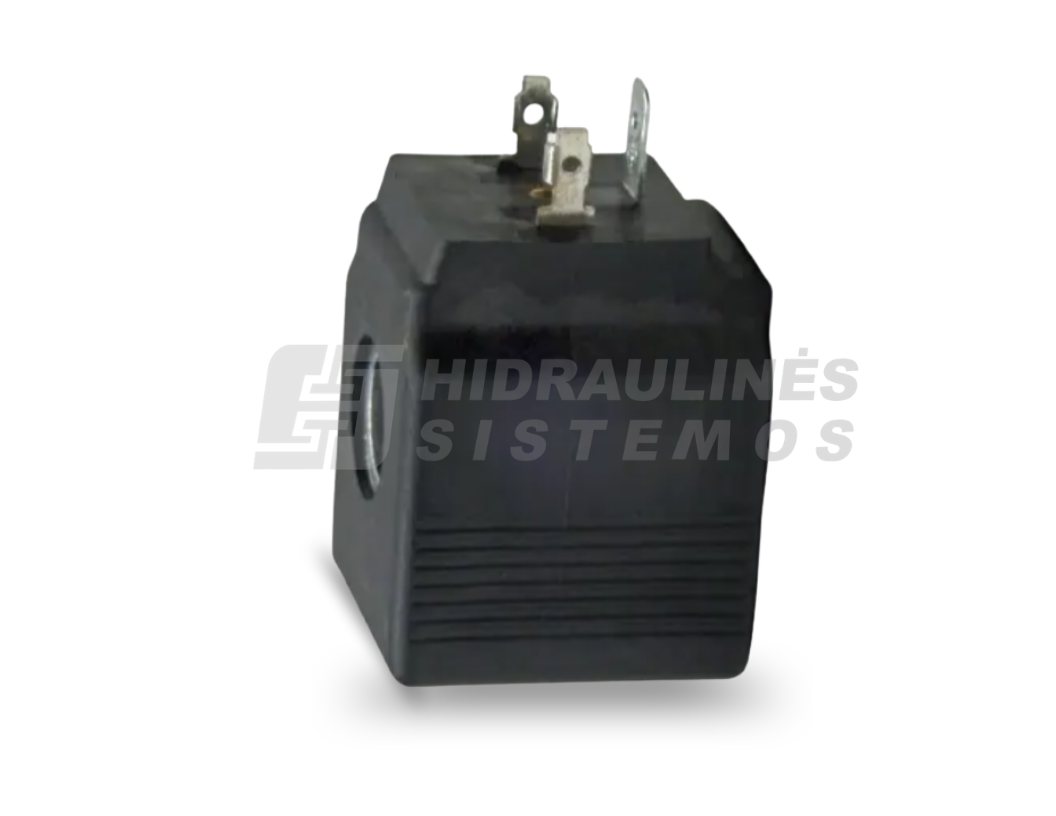

Coil D13, 12 VDC, L-39, D30x38, 18W, DIN
Coil D13, 12 VDC, L-39, D30x38, 18W, DIN
Add to wishlist

Coil D13, 12 VDC, L-39, D30x38, 18W, DIN

Full product specification

18,00 € excl. VAT

OMT/Luen, C30D012DC

28 in stock

OMT/Luen, C30D012DC

SKU: C30D012DC Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Technical Data

  • Manufacturer: LUEN
  • Coil type: EC30
  • Ordering code: C30 D 012DC / C30D012DC
  • Type: Hydraulic solenoid valve coil
  • Rated voltage: 12 VDC
  • DC power consumption (cold coil): 18 W
  • Duty cycle: ED 50% intermittent duty
  • Internal bore: Ø13 mm
  • Width: 30 mm
  • Height: 38.5 mm
  • Electrical connection: DIN (Hirschmann)
  • Connector standard: DIN 43650 / ISO 4400
  • Maximum coil operating temperature: 125 °C
  • Ambient temperature: –30 to +50 °C
  • Permitted voltage variation: ±10%
  • Weight: 0.125 kg

Additional information

Length

L-38
Voltage

12 VDC
Hole diameter C

13
