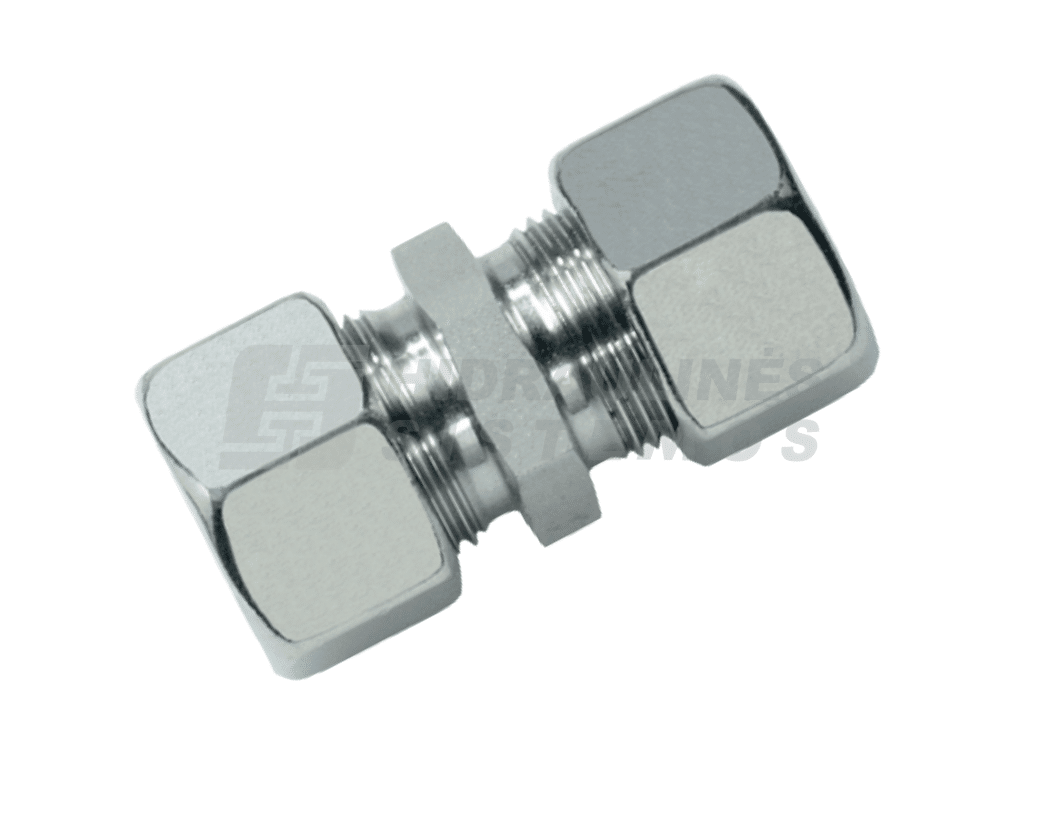

Adapter M36i (S25) x M36i (S25) (pipe-pipe)
17,05 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

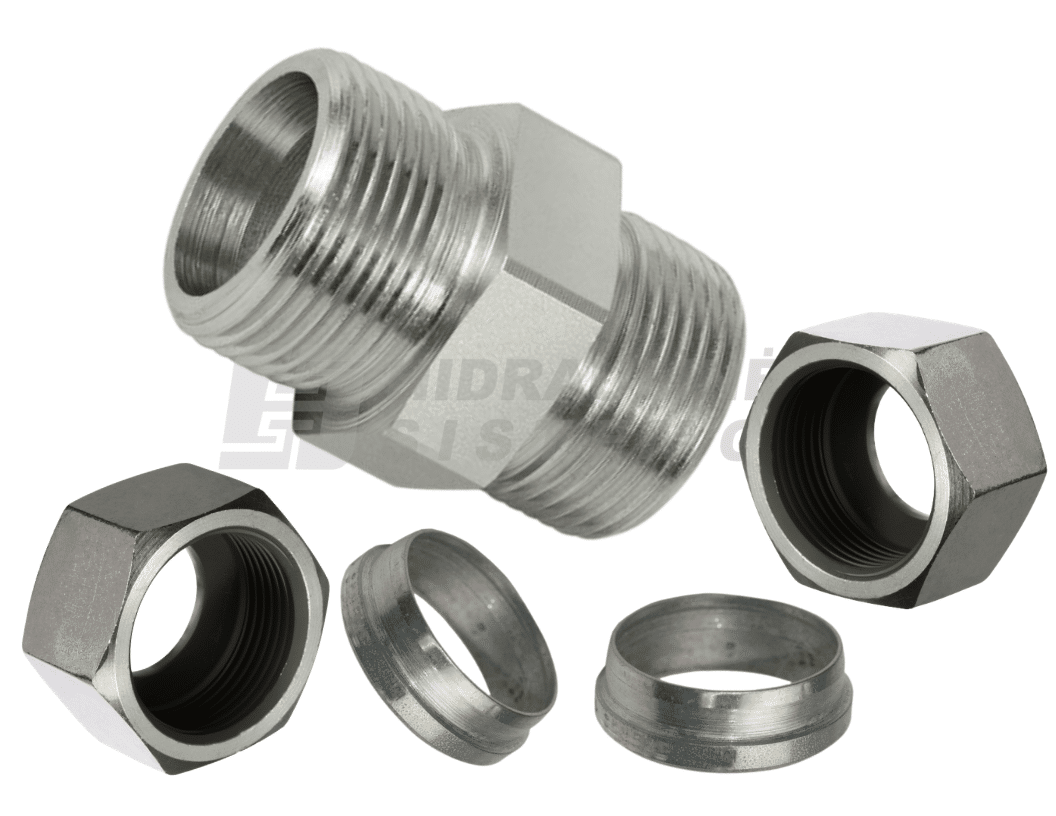

The straight design is used to connect two hydraulic tubes of the same diameter in a continuous line. The fitting is supplied with cutting rings and nuts required to secure the tubes to the fitting body and create a tight connection.
Technical Data
- Type: Straight hydraulic tube coupling
- Tube outside diameter: 25 mm
- Size: 25S
- Series: S (Heavy Series)
- Thread: M36×2
- Number of connections: 2
- Supplied with: Cutting rings and nuts
- Application: Connecting two Ø25 mm hydraulic tubes
Additional information
| Group | Adapter |
|---|---|
| Male/Female 1 thread | Male |
| Male/Female 2 thread | Male |
| Measurement system 1 | Metric |
| Measurement system 2 | Metric |
| Thread 1 | M36x2(S25) |
| Thread 2 | M36x2(S25) |
