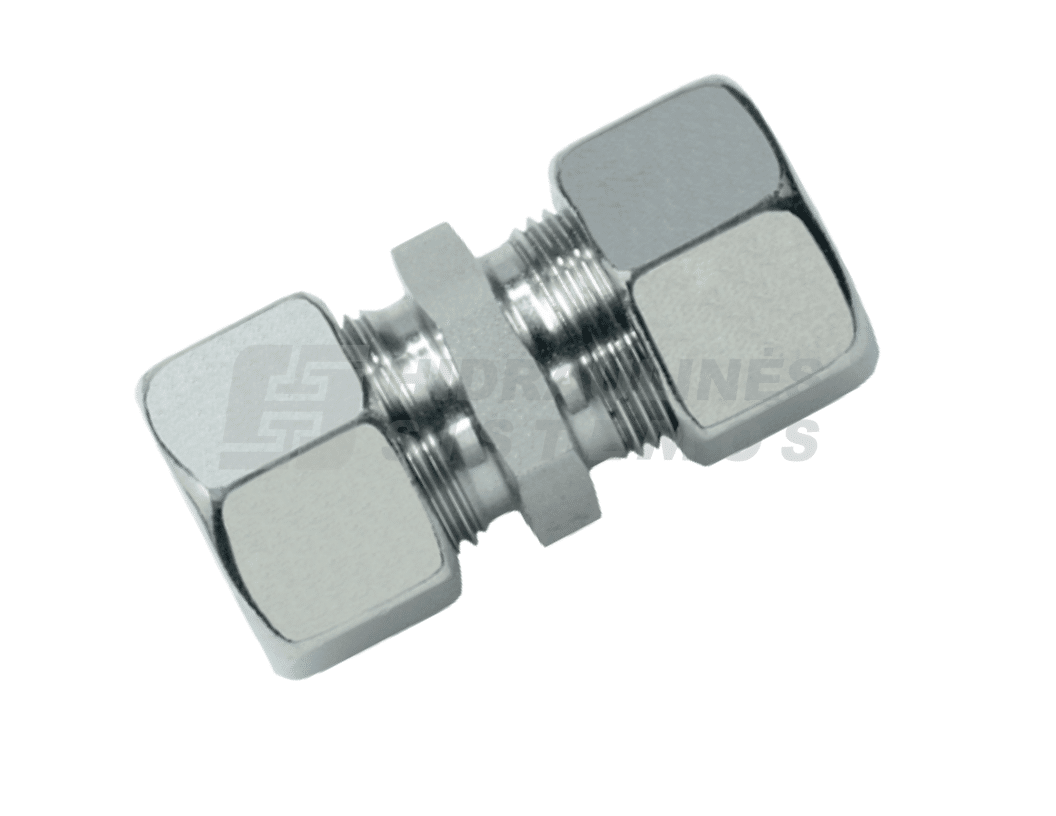

Adapter M22i (L15) x M22i (L15) (pipe-pipe)

4,62 € excl. VAT

27 in stock

SKU: PM22L15 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

Product information

Specifications

Description

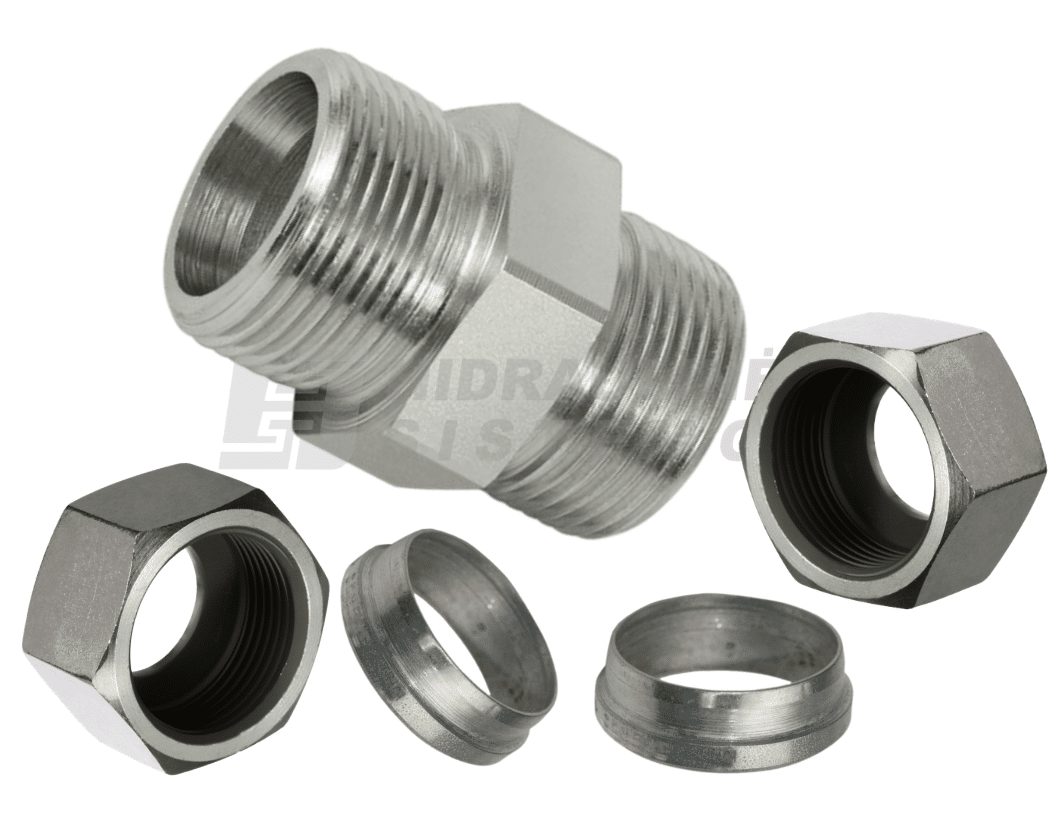

The straight design is used to connect two hydraulic tubes of the same diameter in a continuous line. The fitting is supplied with cutting rings and nuts required to secure the tubes to the fitting body and create a tight connection.

Technical Data

  • Type: Straight hydraulic tube coupling
  • Tube outside diameter: 15 mm
  • Size: 15L
  • Series: L (Light Series)
  • Thread: M22×1.5
  • Number of connections: 2
  • Supplied with: Cutting rings and nuts
  • Application: Connecting two Ø15 mm hydraulic tubes

Additional information

Grupė

Adapter

Išorinis/Vidinis 1 matmuo

Male

Išorinis/Vidinis 2 matmuo

Male

Matavimo sistema 1

Metric

Matavimo sistema 2

Metric

Sriegis 1

M22x1,5 (L15)

Sriegis 2

M22x1,5 (L15)
