65x75x7 / 8 TTS rod seal
7,00 € excl. VAT
Rod seal TTSL, material – polyurethane, pressure 400 bar.
2 in stock
Rod seal TTSL, material – polyurethane, pressure 400 bar.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

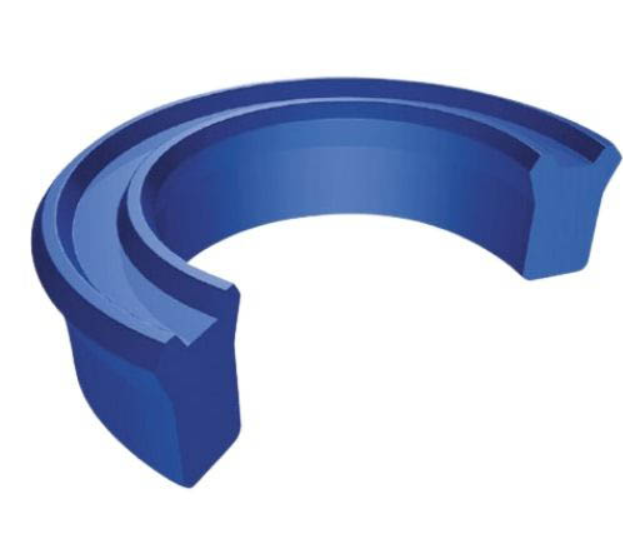

TTSL-profile polyurethane rod seal designed for sealing Ø65 mm rods in hydraulic cylinders. The seal is installed in the cylinder rod sealing assembly and prevents hydraulic fluid from leaking from the pressurised cylinder chamber along the moving rod.
The polyurethane construction provides good resistance to wear and mechanical loads, making the TTSL rod seal suitable for high-pressure hydraulic applications. The specified working pressure is up to 400 bar.
Technical Data
- Part number: TTS65757
- Type: Rod seal
- Profile: TTSL
- Inside diameter: 65 mm
- Outside diameter: 75 mm
- Height: 7/8 mm
- Material: Polyurethane (PU)
- Working pressure: up to 400 bar
- Application: Hydraulic cylinder rod sealing
Additional information
| 1 dimension | 65 |
|---|---|
| 2 dimension | 75 |
| 3 dimension | 7 |
| Type | TTS |
