3 way pneumatic diverter constant openning 3/4′ 140L/min Pmax-200bar 24VDC
335,00 € excl. VAT
DFE203006
Out of stock
DFE203006
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

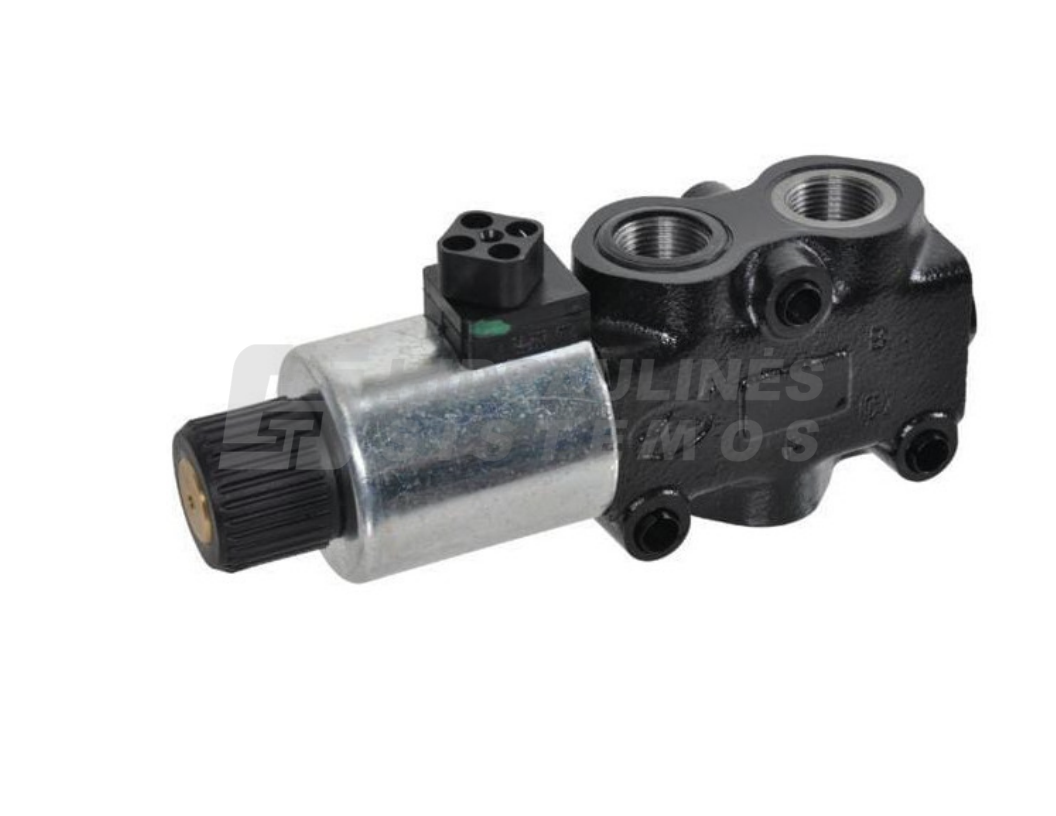

Walvoil DFE203006 is an electrically operated 3/2 hydraulic diverter valve designed to switch hydraulic oil flow between two lines. It allows the flow from one control circuit to be directed to either of two hydraulic functions and can be used, for example, to control two single-acting hydraulic actuators.
The valve is designed for in-line installation, operated by a 24 V DC solenoid and equipped with manual emergency override.
Technical Data
- Manufacturer: Walvoil
- Part number: DFE203006
- Series: DFE3
- Valve type: 3/2
- Operation: Electric
- Supply voltage: 24 V DC
- Ports: 3/4″ BSP
- Maximum flow: 140 l/min
- Maximum working pressure: 200 bar
- Coil diameter: 65 mm
- Overall length: 226 mm
- Overall height: 85 mm
- Mounting hole spacing: 60 mm
- Manual emergency override: Yes
- Installation: In-line
