22 cm3 gear motor GR2 M-1/5(11)-B80C–T
490,00 € excl. VAT
SNM/22LKBBB SNM2 22L CO02 / 121.20.070.00
Out of stock
SNM/22LKBBB SNM2 22L CO02 / 121.20.070.00
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

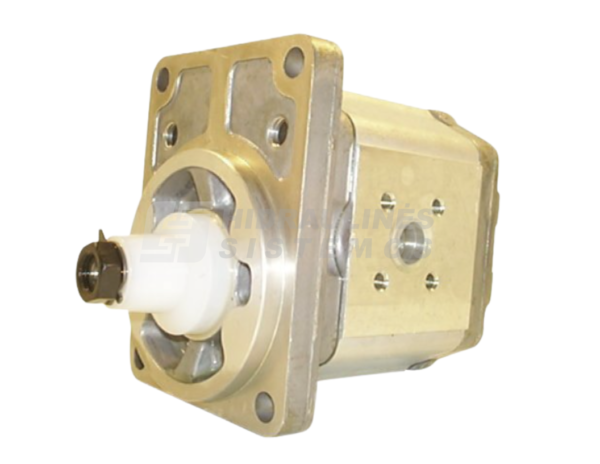

The SNM/22LKBBB (121.20.070.00) is a Group 2 external gear hydraulic motor. It features a compact aluminium construction, reliable performance, and long service life in demanding hydraulic applications.
It is suitable for both mobile and industrial hydraulic systems used in agricultural, construction, forestry, and special-purpose machinery.
Technical data
- Manufacturer: Sauer-Danfoss
- Model: SNM/22LKBBB
- Part number: 121.20.070.00
- Type: External gear hydraulic motor
- Group: 2
- Displacement: 22 cm³/rev
- Rotation: Bi-directional
- Housing: Aluminium
- Application: Hydraulic drive systems
- Weight: approx. 2.9 kg
Additional information
| Group | Group 2 |
|---|---|
| Inlet | 40mm |
| Outlet | 35mm |
| Connections | Flange German / Bosch |
| Connection side/rear | Side |
| Front cover | B80 Bosch |
| Volume | 22.0 |
| Shaft | 1/5 Group 2 tapered |
| Single / Tandem | Single |
