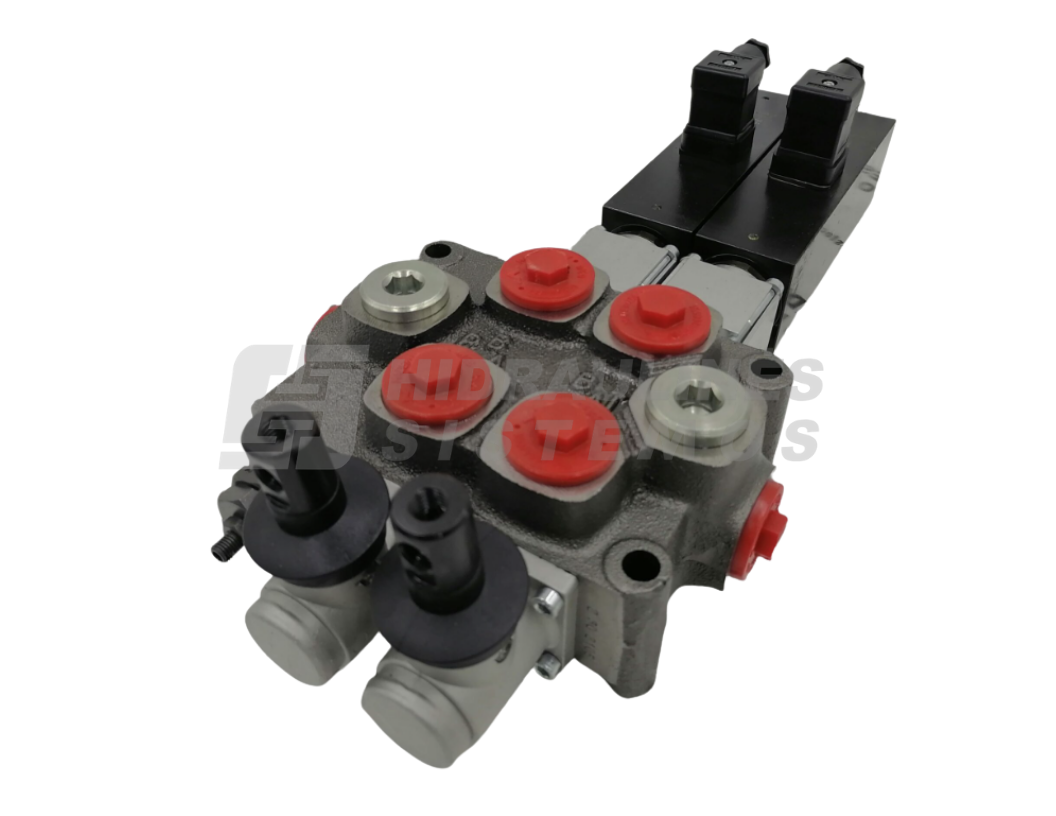

2 sekc. 60 ltr. Q45 1/2′ BSP 2×103 D9 elektrinis valdymas 12V skirstytuvas

Description

Walvoil Q45 F1S(N)-2×103/D9-F3D-12VDC is a two-section monoblock hydraulic directional control valve with 12 VDC direct ON/OFF solenoid control. The Q45 series is designed for mobile and stationary hydraulic systems, including agricultural machinery, lifting and transport equipment and industrial vehicles.

Both working sections feature 103-type double-acting spools. In the neutral position, the A and B working ports are closed, while spring centering automatically returns the spools to neutral when electrical actuation is removed. D9 identifies the double direct ON/OFF solenoid control configuration.

The Q45 has a 50 l/min nominal flow rate, while the D9 electrically controlled configuration allows a maximum flow of 60 l/min. P, T and A/B ports use G1/2″ BSP connections.

Technical Data

• Manufacturer: Walvoil
• Series: Q45
• Configuration: Q45 F1S(N)-2×103/D9-F3D-12VDC
• Type: Monoblock hydraulic directional control valve
• Number of sections: 2
• Spools: 2 × 103, double-acting
• Neutral position: A and B ports closed
• Control: D9 – double direct ON/OFF solenoid control
• Supply voltage: 12 VDC
• Nominal flow: 50 l/min
• Maximum flow: 60 l/min
• Maximum working pressure: 275 bar for D9 electric control configuration
• P, T and A/B ports: G1/2″ BSP
• Maximum T-line pressure: 25 bar
• Solenoid protection: IP65
• Electrical connection: DIN 43650, type A
• Coil power: 58 W
