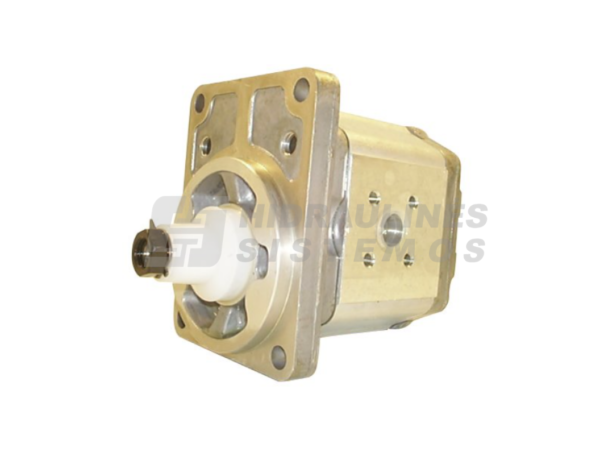

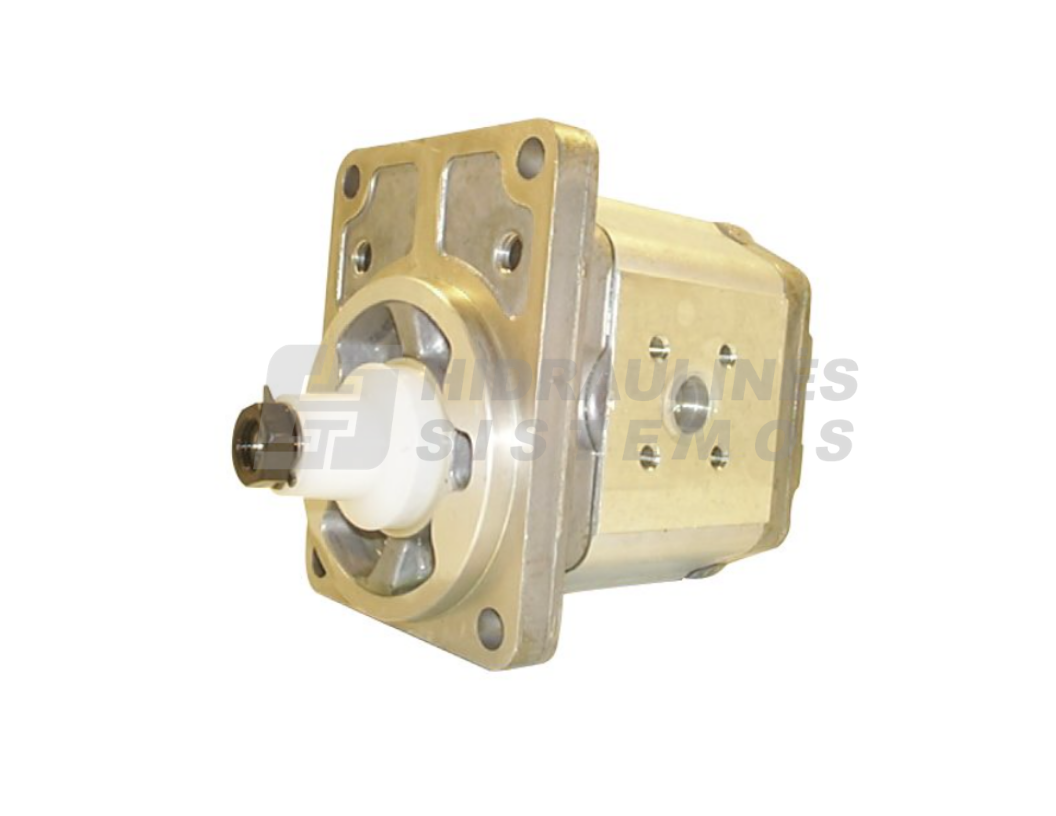

08 cm3 gear motor GR2 M-1/5(11)-B80C T15/T20 CW
550,00 € excl. VAT
0511425004; 2gr. 8cm³ 1:5 CW ø80 LK40/LK35
Out of stock
0511425004; 2gr. 8cm³ 1:5 CW ø80 LK40/LK35
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Technical Data
- Type: External gear hydraulic motor
- Group: GR2 / Group 2
- Displacement: 8 cm³/rev
- Rotation: Clockwise (CW)
- Shaft: Group 2, 1:5 tapered
- Shaft configuration: M-1/5(11)
- Front cover/flange: B80C / Bosch type
- Hydraulic connections: German / Bosch flange type
- Port position: Side
- Inlet flange size: 40 mm
- Outlet flange size: 35 mm
- Configuration: M-1/5(11)-B80C-T15T20
- Product code: 4690211
Additional information
| Group | Group 2 |
|---|---|
| Direction | Right-hand |
| Inlet | 40mm |
| Outlet | 35mm |
| Connections | Flange German / Bosch |
| Connection side/rear | Side |
| Front cover | B80 Bosch |
| Pressure | 250bar |
| Volume | 08 |
| Shaft | 1/5 Group 2 tapered |
| Single / Tandem | Single |
